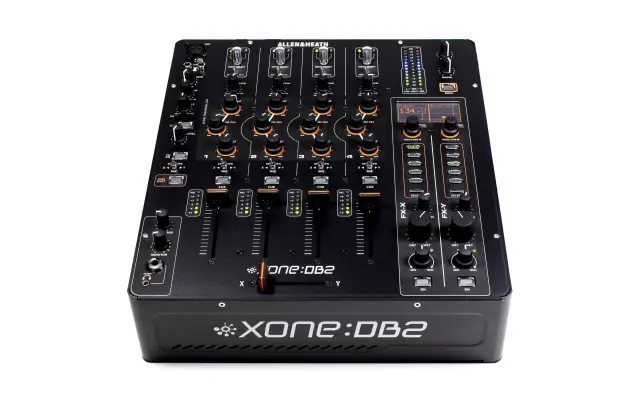

The Xone:DB range exploits the potential of digital mixer technology to bring you maximum DJ creativity. Flexible and versatile mixer controls with an intuitive layout give the DJ full control over the mix.

The DB2 boasts twin chainable FX engines, four stereo channels, full Input matrix, and unique Trimodal EQ system. With its built in USB soundcard, MIDI control, Xone Filters and X:LINK connectivity, the Xone:DB2 unleashes the DJ’s creativity. The Allen and Heath Xone DB2 captures the essence of DB4 in a stylish, accessible, affordable format and blurs the boundaries between DJing, production and performance for the next generation. Order this digital 4-channel mixer from KPODJ today.

Allen and Heath Xone DB2 Features:

Powerful Twin DSP Effects Engine
Flexible 4-Channel Layout
Input Matrix Signal Routing
USB Soundcard
4 Stereo Inputs & Outputs Via USB
Three Mode (Trimodal) EQ Section
Flexible MIDI Control
Bright OLED Display
Lightweight Yet Rugged Construction

Twin DSP FX Engines

Massive FX Library
The Allen and Heath Xone DB2 has more than 50 FX presets divided into 5 FX types: Delays/loopers, Reverbs, Resonance, Modulation and Damage. These are studio grade FX

Expression + Wet / Dry
The Expression and Wet / Dry controls give intuitive, hands-on control for everything from subtle FX washes to total transformation.

Editable FX Parameters
For those who want to drill down further, individual FX variations can be further modified via the rotary controls under the screen.

Input Matrix
Each of DB2's four input channels has a full input matrix that can select from four analogue (Line or RIAA), four USB, or two digital sources, allowing for a wide variety of audio sources to be connected simultaneously. The same source can also be selected on multiple channels.

Trimodal EQ
The Allen and Heath Xone DB2 adopts the fresh approach to creative equalization introduced on DB4. The EQs can be used in three different modes - standard asymmetric EQ (+6/-26dB), total Kill (+6dB/OFF with a 24dB/octave slope), or High-Pass/Low-Pass filter with adjustable resonance.

Mic / Line Input
With 2 band EQ, gain, cue and mix level and with full access to FX.
High Visibility OLED Display
Tested for maximum clarity whether playing on a sundrenched Balearic beach or in a Berlin basement, the high contrast display shows FX selection, BPM and menu setup functions.

Lightweight Chassis
Made for life on the road, Xone:DB2 is robust enough for touring, and its lightweight aluminum chassis helps ease the arm-ache.

Integral Soundcard
The built-in, multi-channel USB2 soundcard allows replay and recording from computer-based audio software for 4 stereo sends and 4 stereo returns.

MIDI Control
All controls (except Mic and Phone levels) send MIDI data. The mixer can double up as a MIDI controller for DJ software such as Traktor Pro and Ableton via the MIDI shift button, which allows the FX selection controls to send MIDI data without changing the mixer settings.

X:LINK
The Xone:DB2 digital 4-channel mixer can integrate smoothly with the new Xone:K2 software controller via Allen & Heath's proprietary X:LINK protocol.

Allen and Heath Xone DB2 Specifications:

Inputs
Analog line: RCA x5
Turntable/line switchable: RCA x2
Digital input: S/PDIF x2
Mic: Balanced XLR
XLINK
USB 2

Outputs Main Mix Out: L/R XLR
Record Out: RCA
Booth Out: 1/4" Phone
Digital Record Out: S/PDIF
XLINK
USB 2

Main Output
0VU = +4dBu

Monitor
0VU = +4dBu

Record Level
0VU = +4dBu

Max. Output Level
+16dBu Balanced

Microphone Sensitivity
-20dB to -50dB

Input Sensitivity
RIAA input sensitivity 1kHz: 70mV = 0VU (200mV max)

Frequency Response
Line in to Mix out: 10Hz to 20kHz (+0/-0.5dB)

Distortion
@ 1kHz line in at +0Vu out: 0.003% (-90dB) unweighted

Noise
22Hz to 22kHz unweighted
Main Mix: -88dBu (104dB dynamic range)
Residual Mix: -94dNu

EQ Section
+6dV boost/-26dB or Total Kill 3 Band modes
Fader shutoff: -110dBr

A/D Conversion
24-Bit Analog/digital line-up: +12dBu = 0dBFS

DSP
Processing: 24-Bit I/O +48-Bit EQ

Mix bus: 56-Bit fixed point

Sampling Frequency
DSP core sampling frequency: 48kHz
USB soundcard sampling frequency: 48kHz
S/PDIF input sampling frequency range: 32Hz to 192kHz
S/PDIF output sampling frequency range: 48kHz

Dimensions (WxHxD)
Mixer: 12.6 x 3.5 x 14" (320 x 88 x 358mm)
Mixer with rack ears: 19 x 3.5 x 14" (483 x 88 x 358mm)
Weight Mixer: 11lb (5.1kg)
Mixer with rack ears: 19lb (8.6kg)

Allen & Heath Xone DB2 (Allen and Heath Xonedb2)
