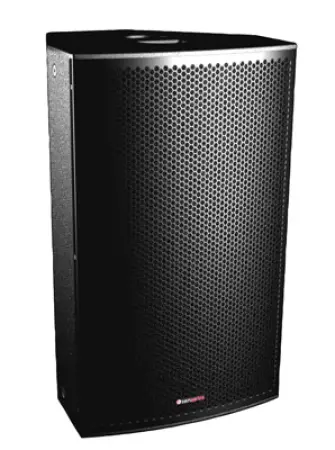

American Audio Sense 12 (American Audio Sense12)

The SENSERIES by American Audio is a multifunctional, compact and lightweight speaker system for flexible yet ambitious sound applications. The HF cabinets` asymmetric design allows for both FOH and monitor usage. The passive crossovers are fine-tuned for optimum acoustics and excellent dynamics and have been developed using complex frequency curves and delays. The SENSERIES is flexible enough to meet all your high-end requirements.

SPECIFICATIONS
• Woofer: 12” AA PA1575, aluminium basket, 75mm voicecoil
• High Driver: 1” compression driver with 44mm (1.75”) voicecoil mounted on a 75°x50° CD Horn
• Power Handling: 350W continuous, 700W program, 1400W peak
• Recommended input power: 250-500W @ 8Ohm
• Sensitivity: 98dB SPLmax., 128dB Peak
• Freq. response (-3dB): 59Hz - 20kHz
• Freq. range(-10dB): 51 Hz - 21kHz
• Nom. dispersion h x v (-6dB): 75°x50°
• Impedance: 8Ohm
• X-Over: 1800 Hz 12dB/18dB
• Finish: black structure paint
• Protective Grid: powder coated steel grill with acoustic foam
• Connector: 2x Speakon connectors
• Handle: 1 handle on the top
• Monitor angle: 45°
• Pole mount: integrated
• M8 Screws for rigging eyes in all corners
• Cabinet: plywood
• Dimensions (LxWxH): 360x640x325mm
• Weight: 18kg

FEATURE OVERVIEW
• Perfect matched components and case details
• Passive full range system for medium size applications
• Multifunctional case design
• Rotatable horn
• 75° x 50° dispersion
• First class mechanical manufacture for day-to-day operations
• Equipped with optimized 12” MF/LF driver
• Large optional accessory range
• Ideal for mobile and installed applications
