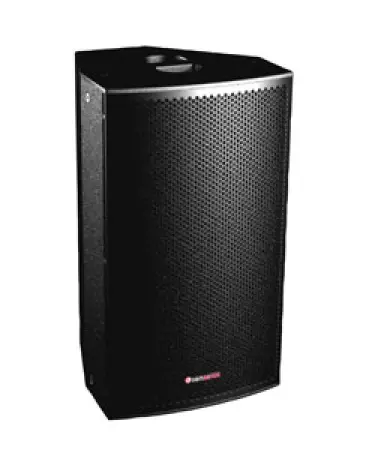

American Audio Sense 8 (American Audio Sense8)
The SENSERIES by American Audio is a multifunctional, compact and lightweight speaker system for flexible yet ambitious sound applications. The HF cabinets` asymmetric design allows for both FOH and monitor usage. The passive crossovers are fine-tuned for optimum acoustics and excellent dynamics and have been developed using complex frequency curves and delays. The SENSERIES is flexible enough to meet all your high-end requirements.
SPECIFICATIONS
• Woofer: 8” AA PA850, Aluminium basket, 50mm voicecoil
• High Driver: 1” compression driver with 44mm voicecoil mounted on a 90°x60° CD horn
• Power Handling: 175W continuous, 350W program, 700W peak
• Recommended input power: 100-250W @ 8Ohm
• Sensitivity: 3dB SPL, 121dB Peak
• Freq. response: (-3dB) 88Hz - 20kHz
• Freq. range: (-10dB) 75 Hz - 21kHz
• Nom. dispersion h x v: (-6dB) 90°x60°
• Impedance: 8Ohm
• X-Over: 2800 Hz 12dB/18dB
• Finish: black structure paint
• Protective Grid: powder coated steel grill with acoustic foam
• Connector: 2x Speakon connectors
• Handle: 1 handle on the top
• Monitor angle: 45°
• Pole mount: integrated M8 Screws for rigging eyes in all corners
• Cabinet: plywood
• Dimensions (LxWxH): 250x436x230mm
• Weight: 10kg
FEATURE OVERVIEW
• Perfect matched components and case details
• Passive full range system for medium size applications
• Multifunctional case design
• Quadratic horn (rotatable)
• 90° x 60° dispersion
• First class mechanical manufacture for day-to-day operations
• Equipped with optimized 8” MF/LF driver
• Large optional accessory range
• Ideal for mobile and install applications
