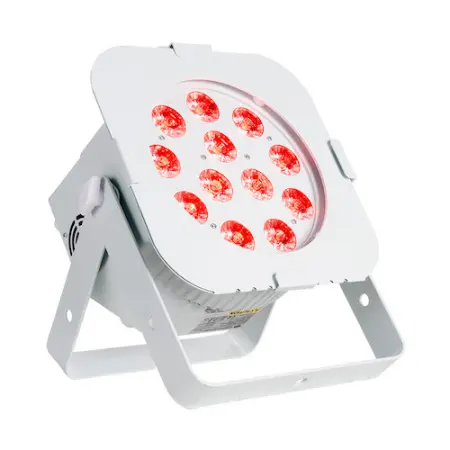

The ADJ 12PX HEX Pearl  is a versatile LED Par fixture with 12 x 12-Watt, 6-IN-1 HEX LEDs and is made from all metal construction. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue, or used as a stage wash.

12PX HEX Pearl professional features include: locking powerCON In/Out to daisy chain power, 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Users may choice 3-pin or 5-pin DMX connectors.

FEATURES:

• Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers

• Scissor yoke + rubber feet allows fixture to be hung or set on the ground

• Flicker Free operation (No flickering on camera)

• Smooth RGBAW + UV color mixing

• All metal white exterior housing

OPTICAL:

• Light Source: 12 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV)

• LED life rated at approximately 50,000 hrs.

• Beam angle: 30-degree

CONTROL:

• 4-button, DMX digital display on rear panel

• Compatible with Dotz Par RF wireless remote control (sold separately)

• 7 Built-In Programs

• 63 built-in Color Macros

• 4 DMX Modes: 6, 7, 8, & 12 channel

• 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled

CONNECTIONS:

• Data linkable via 3-pin or 5-pin DMX connections

• Daisy chain power from powerCON In/Out connection

• With Wired Digital Communication Network

ELECTRICAL:

• Multi-voltage operation: AC 100-240V, 50/60Hz (powerCON power In/Out)

DIMENSIONS / WEIGHT:

• Dimensions (LxWxH): 5.34” x 9.8” x 11.7”/ 136 x 249 x 297.5mm

• Weight: 8.7 lbs. / 4 kgs


WHAT’S IN THE BOX:

• powerCON power cable

• Scissor yoke

• Gel frame to use with diffusion filters (Diffusion filters sold separately)


APPROVALS:

• ETL Approved

• CE Approved

ADJ 12PX Hex Pearl (American DJ HEX295)
