ADJ's Allegro Z6 is a professional linear LED fixture, which delivers lighting designers incredible creative potential. It features 6 individually-controllable 30W quad color 4-in-1 LEDs mounted on a motorized bar with a tilt angle of 220-degrees. The beam angle from the LEDs can be altered between 3.5 and 38-degrees using a motorized zoom function, which means that the unique fixture can be used to create a wide variety of impressive moving wash and beam effects. It features 5-pin DMX connection as well as RJ45 input and output ports for advanced control using Art-Net or Kling-Net.
Tilt Lock for stable transporting.
USB Input for Updating Fixture Firmware.
Folding carrying handle.
Rubber feet so fixture can be set on the ground.
All metal construction with black housing.
Includes 2 Omega brackets for mounting to truss.
Flicker Free, 1200Hz PWM frequency.
The ADJ Allegro Z6 is a linear fixture that features 6 lenses, motorized zoom and motorized tilt (220-degrees) on the X axis. It's powered by six 30W Quad (4-IN-1) RGBW LEDs. Each LED's color may be controlled individually. The fixture's beam angle is adjustable between 3.5-degrees and 38-degrees.

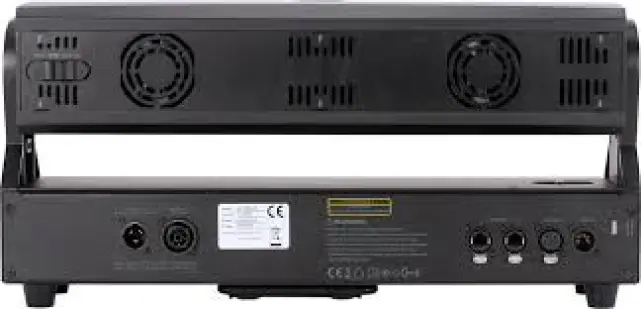

The Allegro Z6 has a 4-button function display, 5-pin DMX In/Out to link data and locking power connectors to daisy chain power. The fixture also has RJ45 In/Out connections for Art-Net and Kling-Net control. There is a convenient USB input for updating the fixture's firmware.
LED: 6x 30W QUAD (4-In-1) RGBW LEDs (30,000 hr.)
Motorized Zoom: 3.5° ~ 38°
LUX: 47,000 @ 2M, Zoomed in to 3.5°; 1,900 @ 2M, Zoomed out to 38°
Display: OLED display with function buttons
5-pin DMX In/Out for data linking
RJ45 In/Out for Art-Net & Kling-Net control
Locking power In/Out to daisy chain up to 6 fixtures (@ 120V), 11 fixtures (@ 230V)
Control Modes: DMX512, RDM, Art-Net & Kling-Net
Multiple DMX channel modes
Tilt & Tilt Fine: 220°
Strobe & Pulse Effects
6 individually controlled Pixels
0-100% Dimming + 16-bit Fine Dimming
6 Preset Dim Curve Modes plus Dim Speed control
With Wired Digital Communication Network
Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
Power consumption: 240W max
Dimensions & Weight:
Dimension (LxWxH): 19.6" x 4.5" x 11" / 500x113x278mm
Weight: 21 lbs. / 9.5kg.
