American DJ AV3 Video Wall 7x4 Complete Package

$41,200.00 new
$41,193.00 reseal
CALL or VIP REGISTRATION (free) new
Warranty
Description Q&A: 0 Reviews: 0 Financing
or $3745/mo $0 Shipping, $0 Tax



Available - Ships in 1-2 days Low Price Guarantee



or $ 3745/mo $0 Shipping, $0 Tax


User Reviews

Average rating: 0 , based on 0 reviews
read all reviews
Product Description

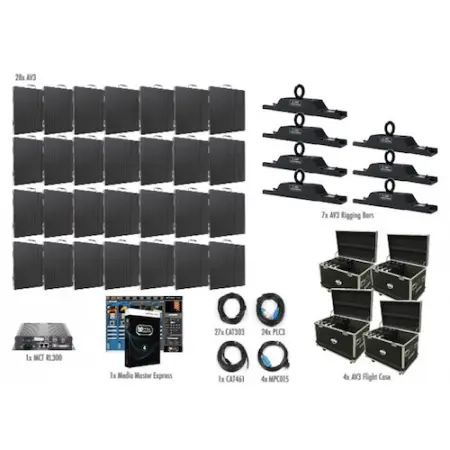

ADJ 7x4 AV3 Video Wall Package   ( American DJ AV3 Video wall package 7x4 )

Includes:
(28) AV3 Video Wall Panels
(7) AV3 Rigging Bars
(27) CAT303
(24) PLC3
(1) CAT461
(4) MPC015
(1) MCT RL300
(4) AV3 Flight Case (AV3FC)
(1) Media Master Express


American DJ AV3 Specifications:

Pixel Pitch: 3.91mm (0.25”)
LED Configuration: 3-in-1 SMD2121 LED
Pixel Density: 128x128; 65536 per square meter
Size :19.75” x 19.75” x 4” / 500 x 500 x 100mm
Weight: 20 lbs. / 9kg.

MECHANICAL RATINGS:
Surface Flatness: Gaps<0.5mm

OPTICAL RATINGS:
Brightness: 1000 NITS
View Angle: Horizontal 120°/Vertical 120° @ 13 ft. (4m)
Gray Scale / Display Color: 14-bit
Brightness Adjustment: 0~100% 100 Levels
Processing: 14-bit

POWER SUPPLY:
Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 170W/per panel
Ave. Power Consumption: 70W/per panel
Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out

CONTROL SYSTEM:
Control Mode: Nova Star Synchronous System with Control via DVI
Frame Update Frequency: 50-60Hz
Scan Mode: 1/16
Refresh Rate: 1920Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance: Ethernet Cable <100m or Fiber Optic>120m
Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
Brightness Correction: Pixel, Module, Cabinet

ENVIRONMENTAL:
Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
Operating Life / MTBF: 50,000 Hours / 5,000 Hours
Protection Level: IP20 (Front and Back)
Out of Control Rate: <0.02%
Listings: ETL, CE, FCC Class A

ADJ MCTRL-300 Specifications:

• Control Mode: Synchronous Display with Control PC by DVI.
• Frame Update Frequency: 50-60Hz.
• Scan Mode: 1/12 Duty.
• Refresh Rate: 1200Hz.
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI.
• Control Distance: Ethernet Cable 120m.
• Support VGA Mode: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668.
• Brightness Correction: Pixel, Module, Cabinet.

American DJ MediaMaster Express Specifications:

Control interface
Computer keyboard
Any MIDI controller compatible with your system
Simple DMX lighting desk

System requirements (PC)
OS: Windows XP, Vista or 7
Processor: Pentium IV 2Ghz recommended
RAM: 512MB, 1GB recommended
Media Player: QuickTime 6.5.x (and up), Adobe FlashPlayer 9.0 (and up), DirectX 9.0c (and up)

System requirements (Mac)
OS: Mac OS X 10.4 (and up)
Processor: Any Intel Mac, G4/1Ghz (and up)
RAM: 512MB, 1GB recommended
Media Player: QuickTime 6.5.x (and up), Adobe FlashPlayer 9.0 (and up)

ADJ AV3FC Specifications:

• Fits 8 AV3 video panels.
• 9mm Plywood.
• Butterfly Latches.
• Swivel Castors.
• Steel Ball Corners.
• Foam Inlay.
• Weight: 80 lbs.
• Dimensions: 41x22x29
show full description
