American DJ AV4IP Video Wall 7x4 Complete Package

$54,780.00 new
$54,768.00 reseal
CALL or VIP REGISTRATION (free) new
Warranty
Description Q&A: 0 Reviews: 0 Financing
or $4980/mo $0 Shipping, $0 Tax



Available - Ships in 1-2 days Low Price Guarantee



or $ 4980/mo $0 Shipping, $0 Tax


User Reviews

Average rating: 0 , based on 0 reviews
read all reviews
Product Description

ADJ Av4 IP 7x4 video wall   ( American DJ AV4IP 7x4 )

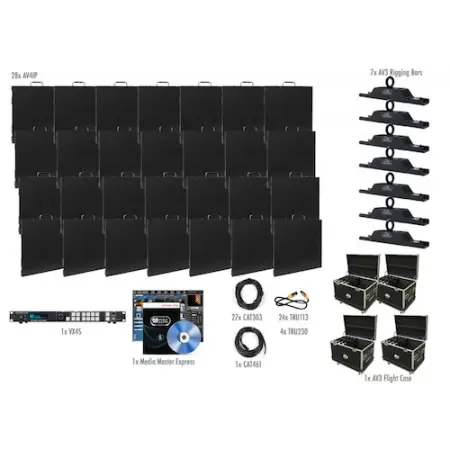

Includes:
28 x AV4IP
7 x AV3 Rigging Bars
27 x CAT303
24 x TRU113
1 x CAT461
4 x TRU230
1 x VX4S
4 x AV3 Flight Case
1 x Media Master Express

The AV4IP is a high resolution, flexible video panel from ADJ. Each panel has a pixel pitch of 4.81mm with a configuration of a 3-in-1 RGB SMD1921 LED's. The panel is IP65 on the front and IP54 on the back, which allows for temporary outdoor use. The brightness is 4000 NITS. There are 2 LED modules per panel. This allows for easy serviceability. The AV4IP includes True 1 powerCon In/Out and etherCON In/Out water proof connections. This panel also features a Novastar receiving card.

The AV4IP is a great video solution for indoor or outdoor use. ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.


SPECIFICATIONS:

• Pixel Pitch: 4.81mm (0.19”)

• LED Configuration: 3-in-1 SMD1921 LED

• Pixel Density: 104x104; 43264 (dot/m2)

• Panel Size :19.75” x 19.75” x 4” / 500 x 500 x 100mm

• Module Quantity: 2

• Module Size: 250 x 500mm

• Module Resolution: 52 x 104 pixels

• Panel Weight: 20 lbs. / 9kg.


MECHANICAL RATINGS:

• Surface Flatness: Gaps<0.5mm


OPTICAL RATINGS:

• Brightness: 4000 NITS

• View Angle: Horizontal 140°/Vertical 140°

• Gray Scaler: 14-bit

• Brightness Adjustment: 0~100% 100 Levels

• Processing: 14-bit


POWER SUPPLY:

• Input Voltage: 100~240V 50-60Hz

• Max. Power Consumption: 180W/per panel

• Ave. Power Consumption: 60W/per panel

• Connections Power/Data: Power = True1 powerCON In/Out; Data = etherCON In/Out


CONTROL SYSTEM:

• Control Mode: Nova Star Synchronous System with Control via DVI

• Frame Update Frequency: 50-60Hz

• Scan Mode: 1/16

• Refresh Rate: 1920Hz

• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

• Control Distance: Ethernet Cable <100m or Fiber Optic>120m

• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

• Brightness Correction: Pixel, Module, Cabinet


ENVIRONMENTAL:

• Operating Temp / :  Fahrenheit: -14° + 122° / Celsius: -10° + 50°

• Humidity: 10-90% (No Condensation)

• Operating Life / MTBF: @ 50,000 Hours

• Protection Level: IP65 Front, IP54 Back (Temporary outdoor use)

• Out of Control Rate: <0.02%

• Listings:  cETL, CE, FCC Class A
