Product Description

ADJ AV6x 9x5 Package   ( American DJ Video Wall Av6x Package )

The American DJ AV6X LED Video Wall Packages are the first professional quality, tight pitch video walls at an affordable price point that we have come across.

Check out these videos:

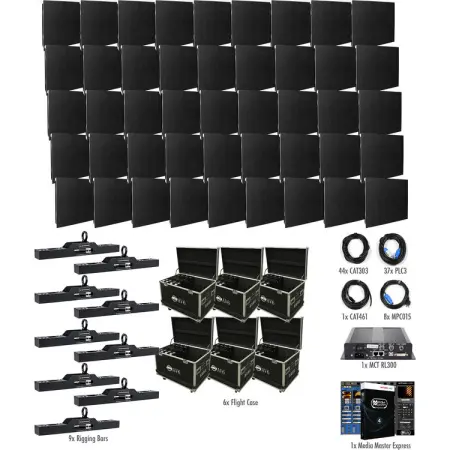

This package includes:
(45) ADJ AV6X 6mm Video Panel
(9) American DJ AV6RB2 Single Panel Rigging Bars
(44) American DJ 3FT Cabinet-to-Cabinet Standard Connector Data Link Cables (CAT303)
(37) American DJ 3FT Power Link Cables (PLC3)
(1) American DJ 50FT Processor to Cabinet First Standard Connector Data Cable (CAT461)
(8) American DJ 15FT Powercon to Edison main power cables (MPC15)
(1) American DJ MCTRL300 Video Processor
(6) American DJ AV6 /AV6X Video Wall Flight Case (AV6FC)
(1) American DJ MediaMaster Express 4 Software

Feel free to contact us to alter this package any way you would like!

American DJ AV6X Specifications

Pixel Pitch: 6.0mm (0.25”)
LED Configuration: 3-in-1 SMD2121 LED
Pixel Density: 96x96; 27,777 per square meter
Size: 22.75” x 22.75” x 3” / 576 x 576 x 75mm
Weight: 23lbs. / 8.15Kg

Mechanical Ratings:

Surface Flatness: Gaps<0.5mm

Optical Ratings:

Brightness: 1200 NITS
View Angle: Horizontal 140°/Vertical 140°
Distance: 20ft. (6m)
Gray Scale / Display Color: 14Bit
Brightness Adjustment: 0~100% 100 Levels
Processing: 14-bit

Power Supply:

Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 300W/per panel
Ave. Power Consumption: 120W/per panel
Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out

Control System:

Control Mode: Nova Star Synchronous System with Control via DVI
Frame Update Frequency: 50-60Hz
Scan Mode: 1/12 Duty
Refresh Rate: 1200Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance: Ethernet Cable 120m
Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
Brightness Correction: Pixel, Module, Cabinet

Environmental:

Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
Operating Life / MTBF: 100,000 Hours / 5,000 Hours
Protection Level: IP20 (Front and Back)
Out of Control Rate: <0.02%
Listings: CE, FCC Class A


ADJ AV6FC Specifications:

• Fits 8 AV6 video panels
• 9mm Plywood
• Butterfly Latches
• Swivel Castors
• Steel Ball Corners
• Foam Inlay
• Outer dimensions (LxWxH): 39.8” x 26” x 32.3” (1.01 x 0.66 x 0.82m)


ADJ MCTRL-300 Specifications:

• Control Mode: Synchronous Display with Control PC by DVI.
• Frame Update Frequency: 50-60Hz.
• Scan Mode: 1/12 Duty.
• Refresh Rate: 1200Hz.
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI.
• Control Distance: Ethernet Cable 120m.
• Support VGA Mode: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668.
• Brightness Correction: Pixel, Module, Cabinet.


American DJ MediaMaster Express Specifications:

Control interface
Computer keyboard
Any MIDI controller compatible with your system
Simple DMX lighting desk

System requirements (PC)
OS: Windows XP, Vista or 7
Processor: Pentium IV 2Ghz recommended
RAM: 512MB, 1GB recommended
Media Player: QuickTime 6.5.x (and up), Adobe FlashPlayer 9.0 (and up), DirectX 9.0c (and up)

System requirements (Mac)
OS: Mac OS X 10.4 (and up)
Processor: Any Intel Mac, G4/1Ghz (and up)
RAM: 512MB, 1GB recommended
Media Player: QuickTime 6.5.x (and up), Adobe FlashPlayer 9.0 (and up)
