American DJ Dotz Panel 2.4 DISCONTINUED

This product has been discontinued by the manufacturer. Please contact us to find a replacement.


or $28/mo Free Shipping, No Tax (except NJ)
User Reviews

Please log-in to write your review

read all reviews
Product Description

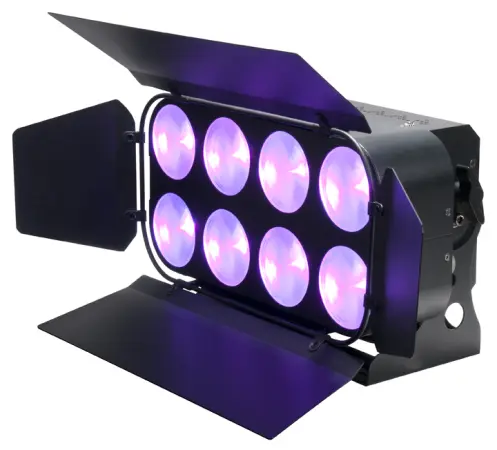

American DJ Dotz Panel 2.4 (ADJ Dots Panel 2.4)


• 2 x 4 COB TRI LED high output Wash/Blinder
• COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
• Use as Wash/Blinder or Pixel Mapped matrix for a stunning visual effect
• Great for Stage Lighting, Bands or Night Clubs
• 5 DMX channel modes: 3, 6, 8, 24 or 29 channel
• Individual Pixel controllable in 24 or 29 channel DMX mode
• 4x Pixel Flip options changes pixel orientation
• 4x Operational modes: Auto Run, Sound Active, Built-In Programs, and DMX Controlled Mode
• RDM Compliant (Remote Device Management)
• Built-In preset colors and programs
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• 25-degree beam angle
• Includes barn doors
• 3-pin XLR chassis mount connectors for DMX linking
• IEC AC IN/OUT to daisy chain power (up to 8 Dotz Panel 2.4’s @ 120V and 17 Dotz Panel 2.4’s @ 230V)
• Power Draw: 106W total (All LED's @ Full)
• 4-button DMX LCD display
• Dual yoke allows fixture to be hung or set on the ground
• Fan Cooled
• Light Source: 2 x 4 9-Watt COB TRI LEDs (RGB: 3 in 1)
• Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
• Dimensions (LxWxH): 13.5” x 6.5” x 9”/ 345 x164 x 227mm
• Weight: 14 lbs. / 6.4 kgs.
