The ADJ Lighting Element H6 Pak is a beneficial all-in-one event up lighting system that offers a powerful and versatile up lighting solution for indoor and temporary outdoor events. This package includes six IP54-rated, battery-powered, wireless DMX, black fixtures that come in a durable flight case with an on-board battery charging solution. It also comes with one UCIR24 wireless remote for easy control.

The Element H6 Pak fixtures boast four 20-watt RGBAW+UV LEDs with a life expectancy rated at 50,000 hours. With a beam angle of 17.6° and a field angle of 28.7°, these fixtures produce a LUX output of 1117 @ 2M and 298 @ 4M, making them perfect for stage up lighting and wall washing.

In addition to its impressive optical features, the Element H6 Pak offers a range of convenient and easy-to-use features. It includes a built-in kickstand to angle the fixture when placed on the floor, a 4-touch button OLED display inside cover panel, and a battery charge indicator on each fixture.

The wireless DMX control protocol allows you to control your lighting system from anywhere in the room, and the 63 built-in color macros make it easy to create stunning lighting effects. With its variable RGBAW+UV color mixing and smooth dimming capabilities, the Element H6 Pak offers a seemingly unlimited color palette.

This lighting system also boasts an energy-saving mode and a battery life of up to 6 hours in normal mode and 12 hours in energy-saving mode (single color). Each fixtures is compact and lightweight and comes in a robust IP54-rated casing with partial protection from dust and water splashes. Each fixture has a weight of 5.3 lbs (2.4kg), making it easy to transport and set up for your event.

Overall, the ADJ Lighting Element H6 Pak is an exceptional lighting system that offers power, versatility, and convenience for all your event lighting needs. With its impressive features and durable design, this lighting system is perfect for event producers, and anyone looking to add some excitement and style to their event.

FEATURES:

IP54 Rated: partial protection from dust and water splashes
Built-in kickstand to angle fixture when sitting on the floor
4-touch button OLED display inside cover panel
Built-in Aria X2 wireless DMX with signal LED indicator
63 built-in Color Macros
Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
LED pulse and strobe effect (0.2Hz-11Hz)
Flicker Free Operation
Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves
Run all night – No duty cycle
Battery charge indicator on each fixture
Energy Save Mode

SPECIFICATIONS:

Element H6 Pak includes:
(6) Element H IP Black Fixtures

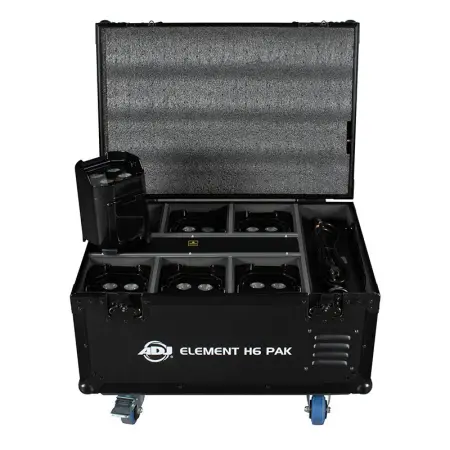

(1) Element H6 FC charging Flight Case
(6) Mirage Q6 IPCB Charging bases and power supplies
(1) UCIR24 Wireless Infrared Controller
(1) IP65 Locking Power Cable

Element H6 Pak Features:
Houses / Transports and Charges (6) Element H IP™ fixtures

Element H6 Pak Dimensions / Weight (loaded case with 6 fixtures):
Length: 26.42” (671mm)
Width: 18.15” (461mm)
Vertical Height: 17.76” (451mm)
Loaded Weight: 84.66 lbs. (38.4 kg)

Pak Electrical / Thermal:
Power Input: AC100VAC~240VAC, 50/60Hz
IP65 Power Locking Input and Output
Max Power Consumption: 200 Watts
Power Draw: 3A max
Charge status indicator
-4°F to 113°F (-20°C to 45°C)

Fixture Specifications
Optical:
4 x 20-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber White & UV)
Life expectancy: rated at 50,000 hrs.
LUX: 1117 @ 2M; 298 @ 4M
Beam angle: 17.6°
Field angle: 28.7°

Connection:
DMX: Wireless DMX
With Wired Digital Communication Network
Contact Charging system. *Charging base and power supply included

Control:
Control protocol: Wireless DMX
7 DMX Channel modes: 6, 8, 9, 12, 14, 15 or 17 channels
Remote control: Aria X2 DMX, UC-IR (Included), Airstream IR
5 Operational modes: RGBAW+UV Dimmer Mode;Auto Run Mode (13 programs, & 1 color/fade combo mode); Static Color mode; and Wireless DMX Control

Battery:
Battery Type: fixed polymer lithium battery
Battery Energy: 59.2WH (Watt Hours)
Battery Weight: 0.24 kg.
Battery Voltage: 14.8V
Battery Capacity: 4000mAh (Typical Capacity)
Total Lithium Ion Cells: 4 pieces
Battery Wrap Material: PVC sleeving + highland barley paper
Battery Charge Time: 6 Hours
Battery Life: 6 Hours in Normal mode and 12 hours in Energy save mode(single color)

Electrical:
Power Draw Total (All LED's @ Full On): 20W
Voltage operation: DC17V

Dimensions / Weight:
• Dimensions (LxWxH): 5.5” x 5.5” x 7.5” / 140 x 140 x 190.5mm
• Weight: 5.3 lbs. / 2.4kg.

Certifications:
cETLus pending
CE pending
IP54 Outdoor rated

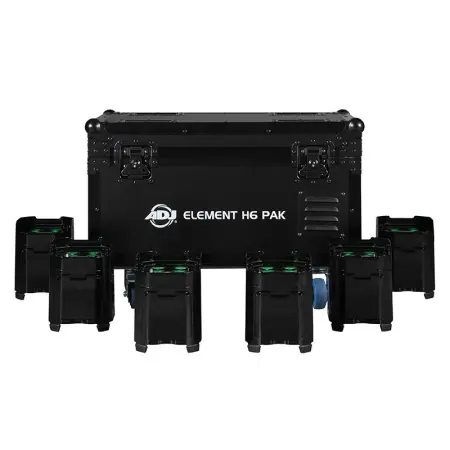

ADJ ELEMENT H6 PAK (American DJ ELEMENT H6 PACK)
