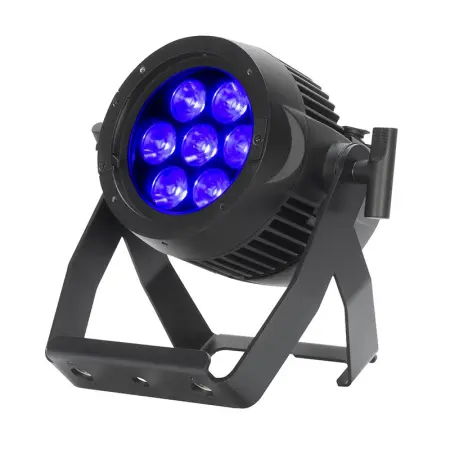

The ADJ Encore LP7IP is a versatile, heavy duty Par with seven (7) 20W Quad LEDs (4-IN-1: Red, Green, Blue & Lime), a 10° beam angle, and all metal construction. It is IP65 outdoor rated to protect against, rain, snow and dust for temporary outdoor events. It offers flicker free operation for TV and film and linear white color temperature control from 2700K - 7000K. A removable 25-degree frost filter is included.

The ADJ Encore LP7IP is a versatile IP65 outdoor rated Par with 7 x 20-Watt (4-IN-1: Red, Green, Blue & Lime) Quad LEDs. With a 10° beam angle, users may produce wide washes with smooth color mixing from 64 built-in color macros utilizing red, green, blue and lime LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with its IP65 rating, it’s a great solution for temporary outdoor lighting of stages or events. The IP65 rating helps protect the fixture from rain, snow and dust.

The fixture’s Quad LED engine offers flicker free operation for TV and film and linear white color temperature control from 2700K to 7000K.

The Encore LP7IP professional features include: 6 DMX modes, 5 operational modes, 6 selectable dimming modes, 4 selectable dimming curves, and a 4-Button DMX menu with digital display. The unit is equipped with outdoor Locking Power connectors and IP rated 5-pin DMX rubber covers and connectors. IP rated power linking and DMX cables are available, but standard 5-pin DMX cables may also be used for indoor applications.

The Encore LP7IP includes a removable 25-degree frost filter. There are several additional frost filter options (sold separately) that customize the beam angle. All filter snap into the front of the fixture.

FEATURES:

Linear Color Temperature Control (2700K to 7000K)
Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
16-Bit Fine Color Control (Red, Green, Blue & Lime)
64 built-in Color Macros

SPECIFICATIONS:

SOURCE:
Light Source: 7 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)

PHOTMETRIC DATA:
Beam angle: 10° (Includes 25° removable frost filter)
CRI: 84
CRI R9: 76.6
Lumens: 2500

CONTROL / CONNECTIONS:

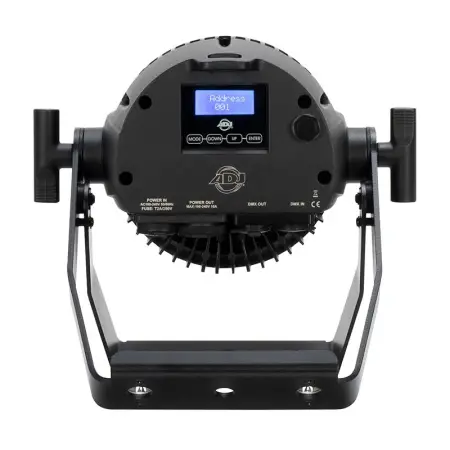

4-button, DMX digital display on rear panel
Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled
Supports RDM (Remote Device Management)
With Wired Digital Communication Network
6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
Flicker Free operation (No flickering on camera)
LED pulse and strobe effect
Electronic Dimming: 0 - 100%
6 DMX Modes: 4, 7, 8, 10, 13 & 16-channel
Quiet fan mode

CONSTRUCTION:
IP65 Rated: Ingress Protection against liquid, snow, dust and sand
All metal construction

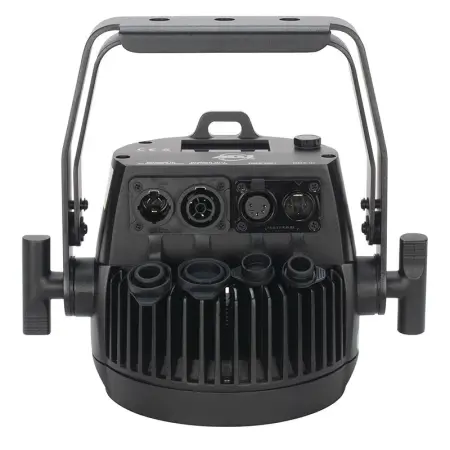

IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
Locking, outdoor IN/Out Power connectors
Data linkable via 5-pin XLR DMX connections
Scissor Yoke & safety eye

ELECTRICAL / THERMAL:
Multi-voltage operation: AC 100-240V, 47/63Hz
Daisy chain: 10 @ 120V, 20 @ 220V
Max power: 103W

DIMENSIONS / WEIGHT:
Dimensions (LxWxH): 8.65” x 6.5” x 9.5” / 220x160x242mm
Weight: 7.5 lbs. / 3.45 kg.

APPROVALS / RATINGS:
cETLus Pending
IP65

INCLUDED ACCESSORIES:
(1) 25° Frost Filter
(1) Power Cord

OPTIONAL ACCESSORIES:
ELP7L100: 100° frost filter for the Encore LP7IP
ELP7L60: 60° frost filter for the Encore LP7IP
ELP7L30X60: 30x60° frost filter for the Encore LP7IP
ELP7L1X40: 1x40° frost filter for the Encore LP7IP
ELP7L20: 20° frost filter for the Encore LP7IP
Z-8050000053: 107mm Omega Bracket
ELP7IPBDA: Barn Door / Gel Frame Kit

ADJ Lighting Encore LP7-IP (American DJ ENCORE LP7IP)
