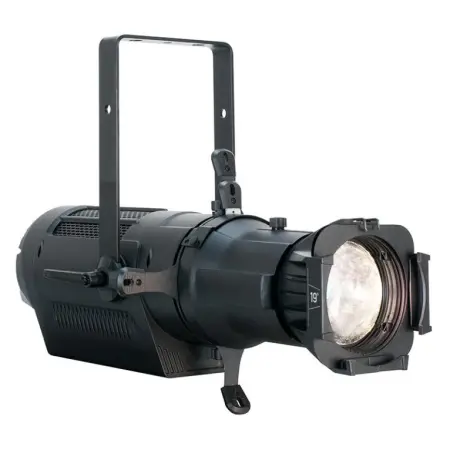

The Encore Profile Pro WW™ ellipsoidal features a high powered 260W Warm White >97CRI 3,200K LED engine producing 10,000+ total lumens, 5°, 10°, 14°, 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, and variable dimming curves and dimming modes, adjustable refresh frequency for flicker free operation for TV and FILM, Locking 5pin XLR In/Out and Locking Power In/Out, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (AC100-240v).

SOURCE
260W Warm White LED Engine
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
>97CRI 10,000 Total Lumens* (*with 26° lens)
3200K Color Temperature

EFFECTS
Electronic Strobe and Dimming
Variable Dimming Curves and Dimming Modes

GOBOS
Supports “B” Size Metal, HT Transparency Gobos*
*Gobos and Holder not included.

CONTROL / CONNECTIONS
(3) DMX Channel Modes (1 / 3 / 4)
Adjustable Refresh Rates (900-1500, 25,000 Hz)
4 Button Control Panel
LED Menu Display
Locking 5pin XLR Connector In/Out
Locking Power Connector In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 27.1” (688mm) (Lens In)
Width: 111.3” (287mm)
Vertical Height: 17.7” (450mm)
Weight: 20.0 lbs. (9.1 kg)

ELECTRICAL / THERMAL
Quiet Fan Cooling
AC 100-240V - 47/63Hz
260W Max Power Consumption
Power Linking: 3pcs Max @120V / 8pcs Max @240V
14° to 113°F (-10° to 45°C)

APPROVALS / RATINGS
CE | cETLus (Pending) | IP30

INCLUDED ITEMS
(1) Locking Power Cable

OPTIONAL ACCESSORIES:
EP Lens 14 (14° Lens)
EP Lens 19 (19° Lens)
EP Lens 26 (26° Lens)
EP Lens 36 (36° Lens)
EP Lens 50 (50° Lens)
EP Lens 15-30 (Adjustable 15° to 30° Lens Assembly)
EP Lens 25-50 (Adjustable 25° to 50° Lens Assembly)

ADJ EncoreProfileProWW
