American DJ Event Bar DMX
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

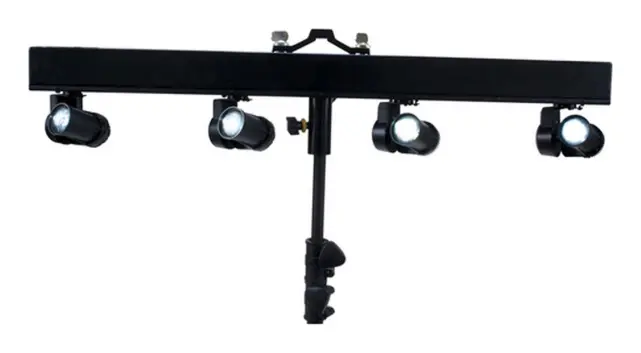

American DJ Event Bar DMX Lighting System
The ADJ Event Bar operates in three selectable modes and as a single piece for easy set up and use.
The American DJ Event Bar DMX intelligent LED fixture. The American DJ Event
Bar has 3 DMX Modes; 12 Channel DMX Mode, 14 Channel Mode, and 25 Channel Mode.
The fixture three operating modes; sound active mode, show mode or DMX
controlled. The American DJ Event Bar can only be run as stand alone unit.
Features:
- LED Pinspot, 4 Head X-Y Bar
- Full DMX Control
- Full Dimming On Each Pinspot Head
- Easy-To-Use Display For DMX or Internal Program Access
- 3-pin XLR connectors
- 4 piece daisy chain power connect
- Strobe effect on each pinspot head
- Full dimming on each pinspot head
- Voltage: 100~240V, 50/60Hz
- LeDs: 4 x 3W White LEDs
- Beam Angle: 12 Degrees (Optional 6 Degree Lens)
- Power Consumption: 54W
- Fuse: 7A
- Power Cord Daisy Chain: 4 Fixtures Max.
- Dimensions (L x W x H): 39 x 3 x 8 in., (1000 x 80 x 202 mm)
- Weight: 16.8 lbs., (7.6 kg)
- Colors: White
- Duty Cycle: None
- DMX: 3 DMX Channel Modes: 12 Channel Mode, 14 Channel Mode, & 25 Channel Mode
- Sound Active: Yes
Dimensions and Weight in Packaging
Shipping Weight: 20 lbs
Shipping Dimensions: 43 x 8 x 12 in
