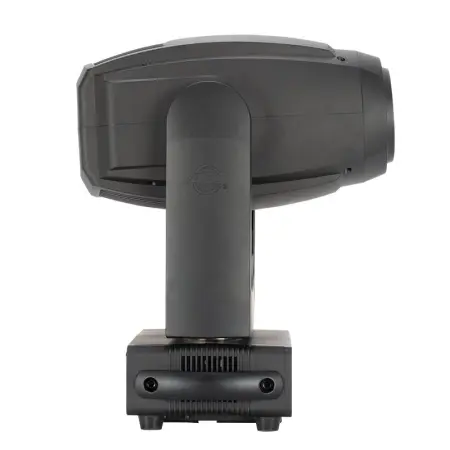

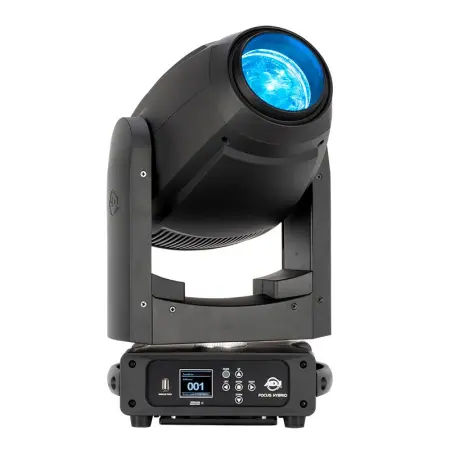

Offering an efficient 200W LED light source combined with an extensive feature set, the ADJ Focus Hybrid is a versatile moving head luminaire. It can function interchangeably as a spot, wash or beam fixture, making it ideal for rental and event production applications as well as for installation in venues that require a moving light which can deliver a high degree of flexibility. It features motorized zoom and focus, two GOBO wheels, an independent color wheel, two rotating prisms and a replaceable frost filter.

Part of ADJ’s immensely popular Focus Series of LED-powered moving heads, the Focus Hybrid is a versatile fixture which can function interchangeably as a spot, wash or beam luminaire. It features an efficient 200W cool white (7,500K) LED engine which has an average life expectancy of 50,000 hours and generates an output of 4,100 lumens. This light is focused through a precision-engineered optical system and a variety of beam-shaping elements to generate a flexible output which can be used to create aerial effects, surface pattern projections or color washes.

The Focus Hybrid offers a beam angle variable between an intense 2-degrees and a significantly wider 24-degrees, with motorized zoom providing quick and precise changes between beam angle settings. In addition, motorized focus can be used to ensure pattern projections are sharp at variable beam angles and projection distances, while a frost filter can be used to further widen the beam angle and soften the beam edge to achieve a wash output. A Heavy Frost filter is fitted as default, but this can be replaced to suit the needs of specific applications and a Medium Filter is also supplied together with the fixture as standard.

A dedicated wheel offers a choice between 11 dichroic color options (plus open), including a 3200K CTO filter for achieving a warm white output. The fixture also boasts two independent GOBO wheels, one featuring 7 slots for interchangeable indexed rotating GOBO patterns and the other featuring 15 static stamped metal GOBOs (including four beam reducers). Two rotating prism options are also provided – 8-facet circular and 6-facet linear – for creating multibeam surface textures and dynamic mid-air effects. Considering its impressive output and feature set, the Focus Hybrid is a compact fixture which weighs in at a very manageable 31 lbs. (14.1kg).

SPECIFICATIONS:

SOURCE
200W LED Engine
50,000 Hour Average LED Life

PHOTOMETRIC DATA
4,100 Total Lumens
7,500K, >70CRI
57,433 LUX 5,336 FC @16.4’ (5m) (3.1° Beam)
1,293 LUX 120 FC @16.4’ (5m) (23.8° Beam)

EFFECTS
8-Facet Circular & 6-Facet Linear Rotating Prisms
Prism Layering
Replaceable Frost Filter (Heavy Frost Default)
Motorized Zoom (2° to 24°)
Motorized Focus
Electronic Dimming & Strobe (1-20Hz)

COLOR
Color Wheel with 11 dichroic colors, includes 3200 CTO Filter

GOBOS
(2) Gobo Wheels
#1 - (7) Interchangeable Rotating-Indexing Gobos
#2 - (15) Static-Stamped Gobos

CONTROL / CONNECTIONS
(3) DMX Channel Modes (19 / 23 / 25)
WiFLY EXR Wireless DMX Built-in (2500 ft. 700M line of sight)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

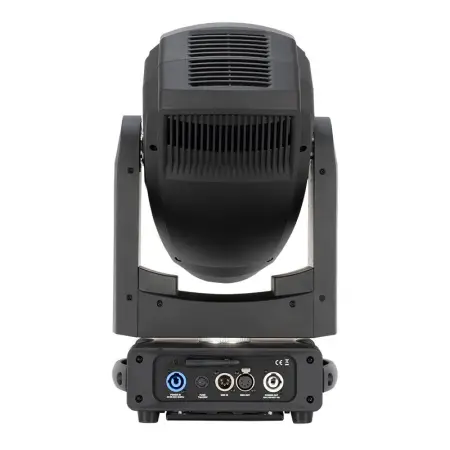

5 pin XLR DMX In/Out
Locking In/Thru power connections
Antenna on rear for WiFLY EXR Wireless DMX connection
With Wired Digital Communication Network

PAN / TILT
Pan: 540-degrees
Tilt: 270-degrees

SIZE / WEIGHT
Length: 13.8" (351mm)
Width: 11.0" (279mm)
Vertical Height: 20.9" (530mm)
Weight: 31 lbs. (14.10kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption: 335W
Max ambient temperature: -13°F to 113°F (-25°C to 45°C)
Max housing temperature: 136°F (58°C)
Daisy chain power up to 2 units @ 120V or 6 units @ 240V

TECHNICAL DATA
DB Rating @ 3ft.: 43.2dB
BTU: 0.32
BTU/H: 1,142.35

APPROVALS / RATINGS
CE | ETL (Pending)
IP20

INCLUDED ACCESSORIES
(1) Power cable
(2) Omega brackets
(1) Medium frost filter

ADJ FOC302 (American DJ FOCUS HYBRID)
