American DJ Focus Profile

$5,199.99 new
Reviews: 0 Description Financing Q&A: 0
or $473/mo $0 Shipping, $0 Tax



Available - Call to confirm exact lead time
Low Price Guarantee



or $ 473/mo $0 Shipping, $0 Tax


Product Description

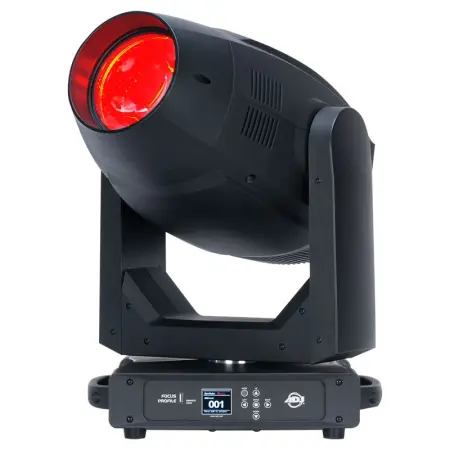

The ADJ Focus Profile is a feature-packed moving head profile fixture with framing shutters. It features a potent 400W LED engine, 4 rotating framing shutters, full CMY color mixing, variable CTO (2700K to 6700K), and two prism effects.

The brightest and most feature-rich Focus Series fixture to date, the Focus Profile is a professional caliber automated profile luminaire designed for theatrical, concert touring and event production applications. It features a potent 400W LED engine, with a native color temperature of 6,700K and a CRI in excess of 70, coupled with an exhaustive collection of beam-shaping tools. These include four, independently controllable, rotating framing shutter blades, which can be used to precisely shape the light output. The unit offers full CMY color mixing together with variable CTO color temperature control (2700K to 6700K) and an additional color wheel loaded with 6 dichroic filters comprised of four primaries together with CTB and CRI filters. Two separate GOBO wheels feature 7 replaceable, indexed-rotating GOBOs, and 8 static GOBOs, respectively, while two bi-directional rotating prisms (3-facet and 4-facet) allow for the creation of a wide variety of aerial effects. Motorized focus, iris and zoom (7 – 45°) together with a replaceable (medium) frost filter and an animation wheel complete the lineup of features offered by this powerful and versatile luminaire.

FEATURES:

4 Rotating Framing Shutters, +/-60°,  plus shape rotation
3-Facet Circular & 4-Facet Linear Rotating Prisms
Replaceable Medium Frost Filter
Animation Wheel
Motorized Zoom (7~45-degrees)
Motorized Focus
Motorized Iris
Electronic Dimming & Strobe (1-20Hz)

SPECIFICATIONS:

SOURCE
400W LED Engine
20,000 Hour Average LED Life

PHOTOMETRIC DATA
20,000 Total Lumens
6,700K, >70CRI (without CRI Filter)
6,200K >87CRI (with CRI Filter)
44,330 LUX 4,118 FC @16.4’ (5m) (7.32° Beam)
1,767 LUX 164 FC @16.4’ (5m) (45° Beam)

EFFECTS
4 Rotating Framing Shutters, +/-60°,  plus shape rotation
3-Facet Circular & 4-Facet Linear Rotating Prisms
Replaceable Medium Frost Filter
Animation Wheel
Motorized Zoom (7~45-degrees)
Motorized Focus
Motorized Iris
Electronic Dimming & Strobe (1-20Hz)

COLOR
Full CMY color mixing
Variable CTO (2700K to 6700K)
Colors Wheel with 6 dichroic colors

GOBOS
(2) Gobo Wheels
#1 - (7) Interchangeable Rotating-Indexing Gobos
#2 - (8) Static-Stamped Gobos

CONTROL / CONNECTIONS
(3) DMX Channel Modes (36 / 40 / 51)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

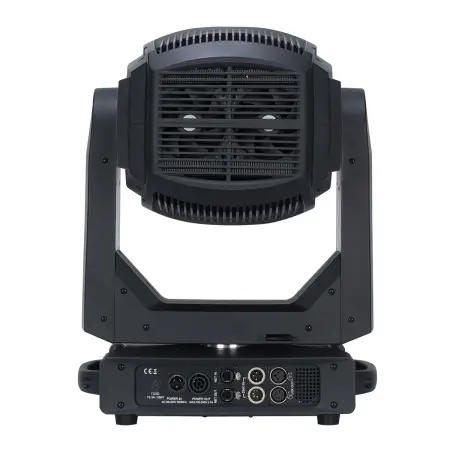

3 & 5 pin XLR DMX In/Out
RJ45 Ethernet In/Out (Art-NET)
Locking In/Out power connections
With Wired Digital Communication Network

PAN / TILT
Pan: 540-degrees
Tilt: 270-degrees

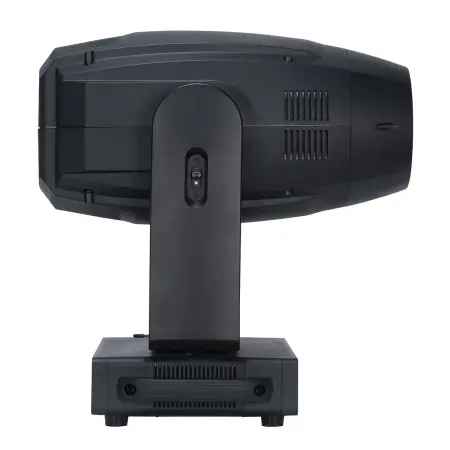

Pan & Tilt Locks

SIZE / WEIGHT
Length: 15.7" (400mm)
Width: 10.2" (259mm)
Vertical Height: 26.1” (664mm)
Weight: 61.2 lbs. (27.75kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption: 560W
Max ambient temperature: -13°F to 113°F (-25°C to 45°C)
Max housing temperature: 136°F (58°C)

TECHNICAL DATA
DB Rating @ 3ft.: 49dB
BTU: 0.53
BTU/H: 1,909.60

APPROVALS / RATINGS
CE | ETL
IP20

INCLUDED ACCESSORIES
(1) Power cable
(2) Omega brackets
(1) Heavy frost filter (JMJ03)

ADJ Lighting Focus-Profile   ( American DJ FOCUS PROFILE )
