Part of ADJ’s Hydro Series, the Hydro Hybrid is a IP65-rated hybrid moving head that produces a beam, spot and wash effect powered by a 420-Watt Osram SIRIUS HRI discharge lamp.

SPECIFICATIONS:

SOURCE:
Osram SIRIUS HRI 420W Dishcharge Lamp
Full Power (420W)  and Eco Mode (330W) operation
Up to 4,000 Hour Lamp Life
**Test lab conditions. May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

PHOTOMETRIC DATA:
Lumens: Beam Mode:12,319, Spot Mode:14,416
Lux: Beam Mode:562,600, Spot Mode:223,200 (@5m, zoomed out
CRI: 77 +/- 5
Correlate color temperature: 6500K +/- 300K
Zoom Range: Beam Mode: 1.6°-17.7° / Spot Mode: 3.1°-39.2°

EFFECTS
Beam, Spot and Wash
Motorized Zoom
Frost Filter (Heavy)
2 Prisms on Dual Planes, 8 facet circular / 6 facet linear
CMY/Color Macros
Gobo/Prism Macros
Motorized Focus
High Speed Shutter and Strobe
Pan Degree: 540°/630°
Tilt Degree: 270°

COLOR:
Full CMY Color Mixing System
White Color Temp Presets
12 Position Color Wheel
27 Color Macros (Color Wheel + CMY)

GOBOS:
2 Gobo Wheels
9 Interchangeable-Rotating / Indexing Glass Black&White Gobos
14 Static-Stamped Metal Gobos

CONTROL / PHYSICAL:
DMX and RDM Protocols
3 DMX Channel Modes (24, 28 & 32)
1 User Assignable DMX Channel Mode
Aria X2 Wireless Management / DMX System
(4) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
Outdoor, IP66 5pin DMX In/Out
Outdoor, IP66 Locking Power In/Out
Pan/Tilt Locks

SIZE / WEIGHT:
Length: 11.4” (290mm)
Width: 16.31” (414.27mm)
Height: 29.17” (741mm)
Weight: 69.7 lbs. (31.6 kg)

ELECTRICAL / THERMAL:
AC 100-240V 50/60Hz
580W Max Power Consumption
-4° to 113°F (-20°C to 45°C)

APPROVALS / RATINGS:
CE
cETLus (Pending)
IP65

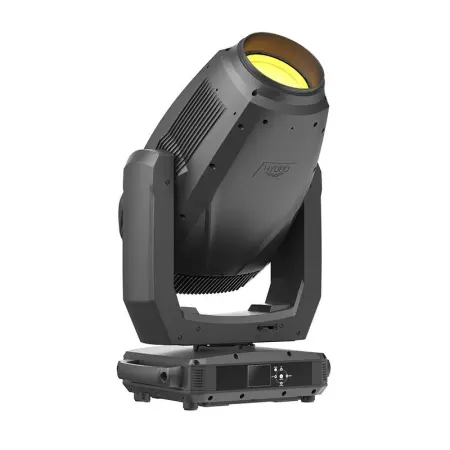

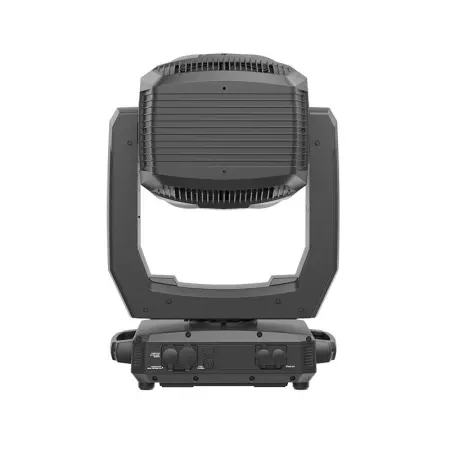

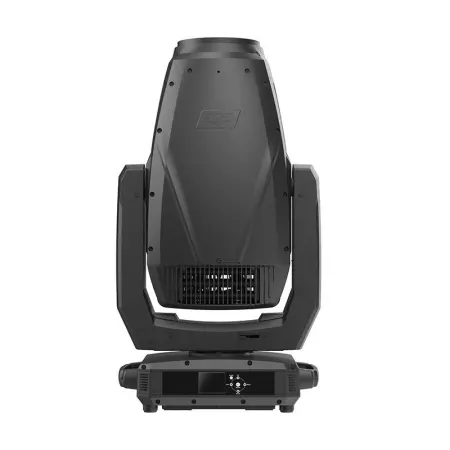

ADJ HYDRO HYBRID (American DJ Hydro Hybrid Moving Head)
