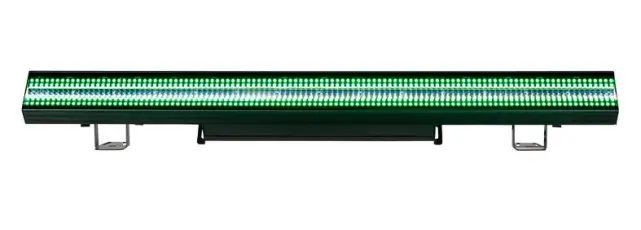

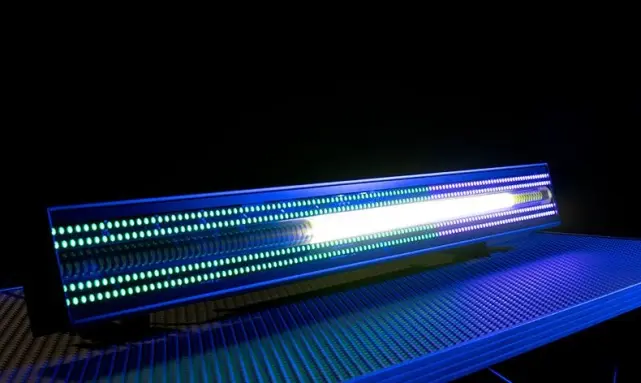

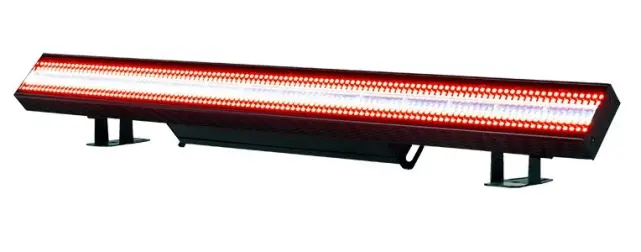

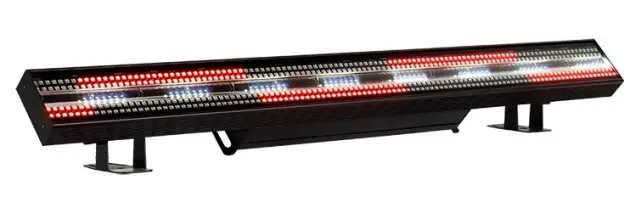

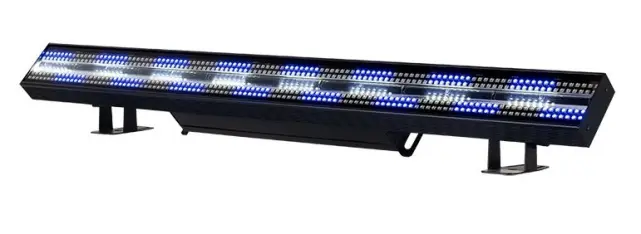

The ADJ Jolt Bar FX features a central strip of 112 x 5-Watt cool white SMD LEDs, surrounded on both sides by a total of 672 x 0.3W RGB color mixing SMD LEDs. This allows the same fixture to generate intense white strobing and multi-colored chase effects. Both types of LED are also grouped into independently controllable zones (16 white and 32 color), which means the unit can also be used to generate strobe chases and other ‘eye candy’ effects.

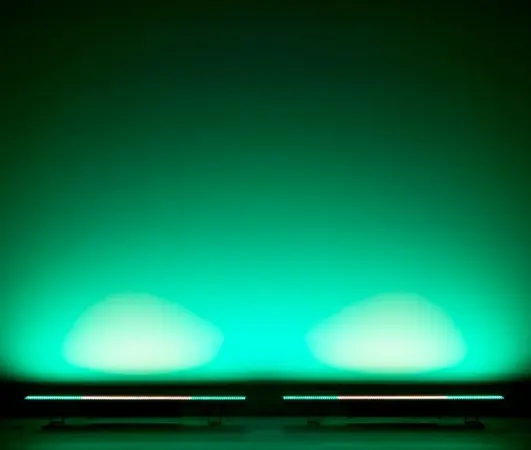

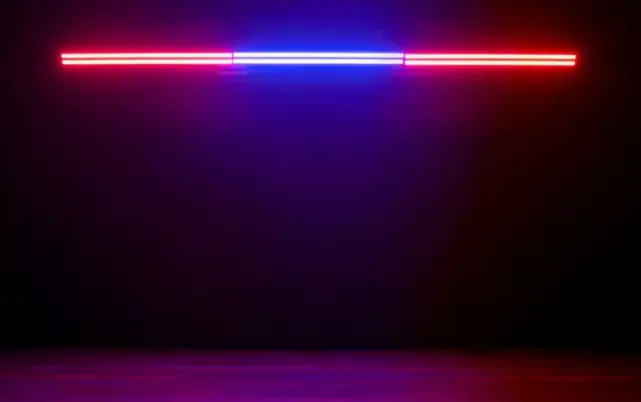

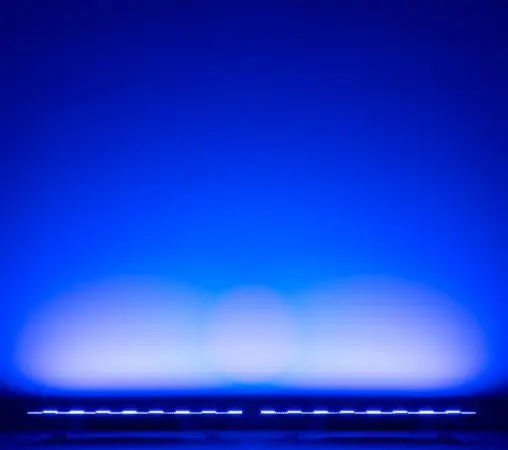

With a wide 116-degree beam angle and immense light output, the Jolt Bar FX is ideally suited to large concert and festival stages, as well as dance events and big nightclub installations. It is supplied with a pair of versatile 180-degree hanging brackets, which can also be used as floor stands, and is designed such that multiple units can be positioned side by side to create continuous zone chase effects. For strobe effects, the unit offers variable speed between 0.35Hz and 25Hz and its LED refresh rate can also be adjusted between 900 and 25kHz.

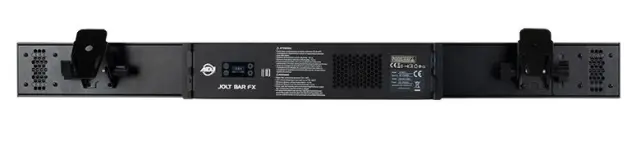

The fixture offers a choice of 11 different DMX modes (6, 9, 13, 16, 18, 32, 38, 42, 64, 112 and 126 channels), allowing flexibility depending on the level of control required and the number of channels available. To aid with quick and eye-catching programming, the unit is also supplied with 25 built-in RGB LED program macros and 9 built-in white LED program macros. An intuitive 4 touch button LCD menu display on the rear of the unit facilitates easy DMX addressing as well as configuration of the various operating modes.

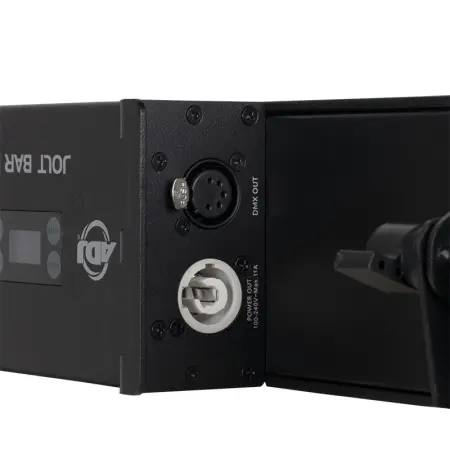

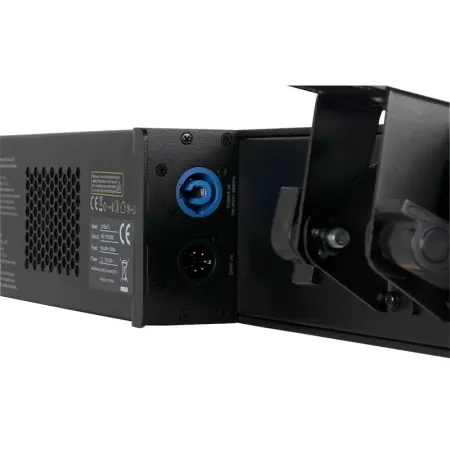

Measuring 1m in length (39.4”), the fixture is compact in its other dimensions (4.1”/104mm and 4.4”/111mm). It has a robust metal construction yet has been carefully engineered to keep its weight to a minimum (8.8lbs. / 3.99kg.), making it ideal for concert touring and event production applications. It is fitted with locking power input and output sockets, allowing multiple fixtures to be connected from a single power outlet, which are positioned on either side of the fixture – together with the 5-pin DMX input and output sockets – to allow convenient setup and neat cable runs.

Specifications:
Light Source:
672 x 0.3W RGB SMD LEDs + 112 x 5W Cool White SMD LEDs
116 Degree Beam Angle
Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm.  / Cool White: 5500-7000K
50,000 Hour Average LED Life

Features:
32 x RGB LED zones
16 x Cool White LED
25 built-in RGB LED Program Macros
9 built-in Cool White LED Program Macros

Control:
Control Protocol: DMX
11 DMX Modes: 6, 9, 13, 16, 18, 32, 38, 42, 64, 112 and 126 channels
Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
0-100% Smooth Dimming
Strobe, shutter & pulse control
Max Strobe Rate 25Hz. Min Strobe Rate: 0.35Hz.
Adjustable LED Refresh Rates (900~25kHz)
With Wired Digital Communication Network
Display: LCD display with 4-button touch menu

Connections:
Data: 5-pin DMX In/Out
180 degree mounting bracket system
Power locking power in/out

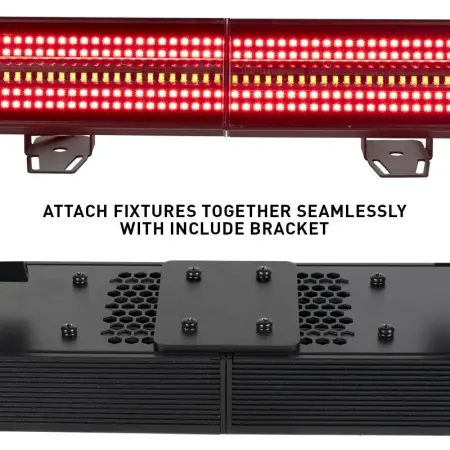

Connect fixtures seamlessly using included metal bracket attachment

Electrical:
100-240V 50Hz/60Hz (Auto Sensing)
Max Power Consumption: 340W

Dimensions / Weight:
Length: 39.4” (1000mm)
Width: 4.1” (104mm)
Height: 4.4” (111mm)
Weight: 8.8 lbs. (3.99kg)

What’s Included:
1x power locking power cable
