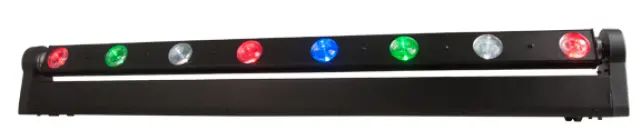

American DJ Sweeper Beam Quad LED

The ADJ Sweeper Beam Quad LED creates exciting lighting effects with it’s quick sweeping beams and it’s 8-Zone RGBW LED chasing, pulsing and strobing LEDs. This unique fixture features 8x 8-Watt bright, Quad LEDs with a narrow 3.4 degrees beam angle, 4 DMX Channel modes and a 4-Channel LED DMX menu.




The American DJ Sweeper Beam Quad LED may be controlled via it’s own built-in programs, a DMX Controller or the easy-to-use UC3 Controller. Best when used in multiples, the Sweeper Beam LED is designed for stages, nightclubs and mobile entertainers.

ADJ Sweeper Beam Quad LED Specifications:
• Unique lighting fixture with quick sweeping narrow beams combined with an 8-Zone LED chase
• 8x 8-Watt RGBW LEDs
• 4-Button DMX LED Display
• 3 Operational modes: DMX controller, Master/Slave & Sound Active
• 35 DMX Channel modes
• DMX-512 Protocol
• Electronic Dimming: 0 - 100%
• Includes exciting sound activate built-in programs
• LED pulse & strobe effect
• 270 degree tilt from smooth Stepper Motors
• Extremely Long Life (50,000 hr. rated)
• Beam angle: 3.4-degrees
• Runs extremely cool! - NO Duty Cycles! – Run all night!
• Includes mounting brackets to mount on a wall or set on the ground
• Safety hook on rear panel
• Very low power consumption - connect more units in a single circuit
• IEC AC IN/OUT on rear to daisy chain power (up to 4 Sweeper Beam Quad LED’s @ 120V and 7 Sweeper Beam Quad LED’s @ 230V )
• Compatible with ADJ UC3 Series easy-to-use controllers (sold Separately)
• Power Consumption: 81W maximum
• Multi-voltage operation: AC 100-240V 50/60Hz- IEC socket
• Dimensions (LxWxH): 38.5”x 3”x 5.25” / 973 x 73 x 132mm
• Weight: 14 lbs. / 6.3 kg.
