The Vizi Wash Z19 is a 380W professional moving head wash fixture with variable motorized zoom (10 ~ 60-degrees) and nineteen 20W Quad (RGBW / 4-IN-1) LEDs. It features 3 or 7 zones of LED ring control, smooth dimming control from 0-100% (plus 16-but fine dimming), twist lock power In/Out connections to daisy chain power, both 3-pin and 5-pin DMX In/Out and a built-in USB port for a convenient connection to update software if needed.

There are 64 built-in color macros, 16-bit fine zoom control, and 4 DMX control modes. This fixture is ideal for washing stages, theaters, churches, nightclubs, concert venues and event productions.

Specifications
Optical:
• 19x Osram 20W RGBW (4-IN-1) LEDs
• Motorized Zoom: 10 ~ 60-degrees

Connections:
• Seetronic locking power In/Out to daisy chain power
• Daisy chain up to 5 fixtures @ 120V, 11 fixtures @ 230V
• 3-pin & 5-pin In/Out DMX Connections
• With Wired Digital Communications Network

Control:
• Control: DMX-512 & RDM
• Multiple DMX Channel Modes
• 64 built-in Color Macros
• Color display with touch buttons
• 3 or 7 zones of LED ring control
• Smooth 0-100% Dimming
• Fine 16-bit Dimming
• 6 Dimmer Curve modes
• Fine 16-bit Zoom control
• Built-in USB software upgrade port
• Various Strobe speeds (1-40Hz)
• Gamma Brightness control
• Pan: 540-degree (plus fine 16-bit pan)
• Tilt: 270-degrees (plus fine 16-bit tilt)

Electrical:
• Multi-voltage operation: 110-240V, 50-60Hz
• Power Consumption: 285W Max

Dimensions / Weight:
• Dimensions (LxWxH): 12.1”x7.7”x15.5” / 306.6×195×393.3mm
• Weight: 20.7 lbs. / 9.4kg.

What’s In The Box:
• Two Omega Brackets
• Twist lock power cable

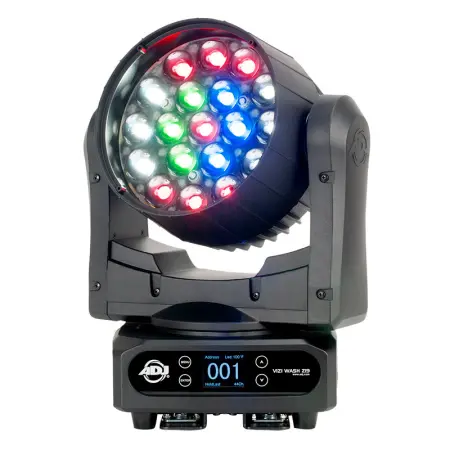

ADJ ViziWashZ19 (American DJ Z19)
