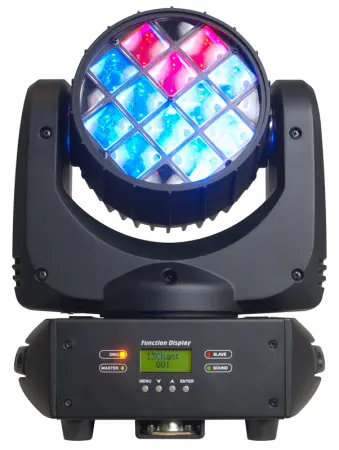

American DJ Vortex-1200 (ADJ Vortex 1200)



The ADJ Vortex 1200 offers a new dimension of excitement for nightclubs, bars, stage productions and mobile entertainers. This unique Moving Head produces a Moonflower type effect that sprays hundreds of colored beams of light across a room or dance floor.

The Vortex 1200 uses twelve 10W RGBW (4-IN-1) Quad color LEDs. It’s 16-piece lens kit continuously rotates back and forth creating pure lighting excitement. Other features include: zoom (5 ~ 44-degree beam angle), fast pan/tilt, 3 operational modes, 4 DMX channel modes, 23 built-in color macros, 4 show modes and 5 selectable dimming curves.

The Vortex 1200’s quad LEDs are rated at 50,000 hours, the maximum power draw is 174W, and up to 4 Vortex 1200’s (@ 120V) or 8 Vortex 1200’s (@ 230V) may be power daisy-chained together via the built-in PowerCon connectors. The unit includes an Omega bracket for mounting on truss or stands.

Specifications:
• Unique Moving Head with a Moonflower type effect that produces hundreds of beams of light
• 16-piece lens kit rotates continuous 360 degrees counter or counter-clockwise
• Twelve 10W RGBW Quad Color (4-IN-1) LEDs
• Effect Zoom: 5 ~ 44-degree beam angle
• 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled
• 4 DMX channel modes: 14, 15, 17 or 29 channel
• 23 Built-In Color Macros
• Electronic Dimming: 0% - 100%
• Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together
• Fast Pan Tilt Movement
• Pan: 540-degree; Tilt: 240-degree
• 16-Bit Fine Pan/Tilt control
• 4 Show Modes
• Stepper motors with micro stepping
• Includes Omega bracket for truss mounting
• Fan cooled
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• Electronic Strobe/Random effect; random strobe slow to fast
• PowerCON AC In/Out on rear to daisy chain power (up to 4 Vortex 1200’s @ 120V and 8 Vortex 1200’s @ 230V)
• Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
• Light Source: 12 x 10W High Output RGBW Quad LED’s
• Long Life LED (Rated at approximately 50,000 hrs)
• Multi-voltage Operation: 100-240V, 50Hz/60Hz
• Power Draw: 174W total (All LED's @ Full On)
• Dimensions (LxWxH): 10.5” x 6.75” x 13”/ 263 x 170 x 327mm
• Weight: 16 lbs. / 7.3 kg.
