Details

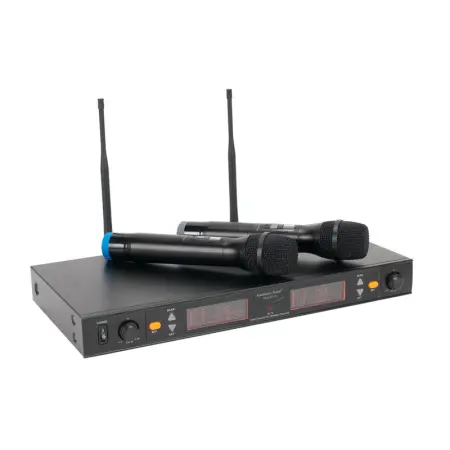

The American Audio WM-219 is a 2-channel UHF wireless microphone system that includes two wireless microphones, two different color coded rings (to differentiate each microphone) and a wireless receiver with individual volume control and audio input for each microphone.

The WM-219 is designed for use in PA, karaoke, mobile entertainers, schools and houses of worship. It has a wireless range of 300 feet / 90M (line of site) and each microphone has 6-10 hour battery life.

• UHF Dual Receiver Handheld Wireless Mic system
• Dual Easyview displays
• 100 Channels per receiver
• FSS Smart Scan searches for the best open frequencies
• 2 detachable UHF antennas. Front or rear mount (includes BNC antenna cables)
• 19” Rackmount receiver
• 2 handheld transmitters with “aQuevoice” capsules

ADJ Wireless Mic System Specifications:
FEATURES:
• Individual volume controls on each channel
• On/Off power switch

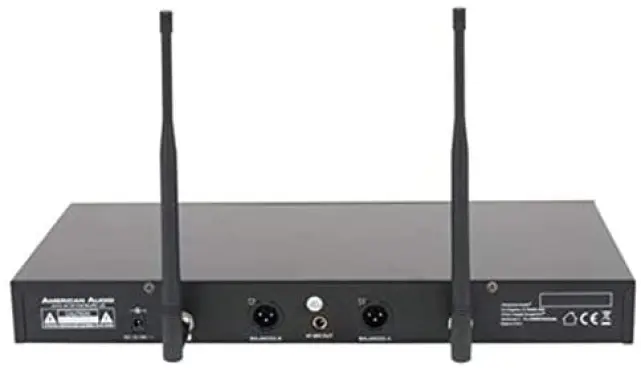

• 2 Individual 3-pin XLR balanced microphone outputs
   + One 1/4-inch mixed output
• 2 removable antennas and extension cables for
   front mounting
• Rugged 1RU Metal Receiver Chassis
• Quartz Controlled Fixed Frequency

WHAT’S INSIDE:
• 2x Hand Held Wireless Microphones (AA batteries
   not included)
• 2x Microphone Colored Rings
• 1x 2-Channel UHF Wireless Receiver
• 2x Detachable UHF Antennas
• 1x Power Cable
• 2x Rack Ears to mount in 19-inch rack mount
• 2x Microphone clips

PERFORMANCE:
• Wireless Range: 300 ft. (90M) line of site*
• Battery life with full charge: 6-10 hours
• Frequency Range: UHF 540-590MHz
• Dynamic Range: >98dB
• Total Harmonic Distortion: <1%
• Frequency Response: 50HZ ~ 14KHz 3dB
• Signal to Noise Ratio: >85dB
• Audio Output Level: 0-300mV (Balanced: 0-2V)
• Transmitting Power: +10sBM

*Actual wireless range will depend on RF signal absorption
and interference

DIMENSIONS / WEIGHT:
• Receiver Dimensions (LxWxH): 16.5”x9”x1.75” / 420x230x45mm
• Receiver Weight: 1.5 lbs. / .68kg.

ADJ WM 219 (American DJ WM 219 Wireless MIc)
