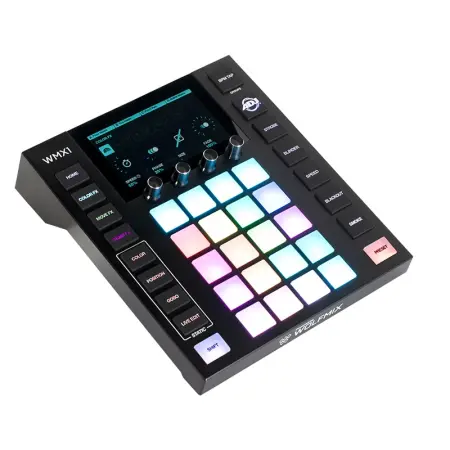

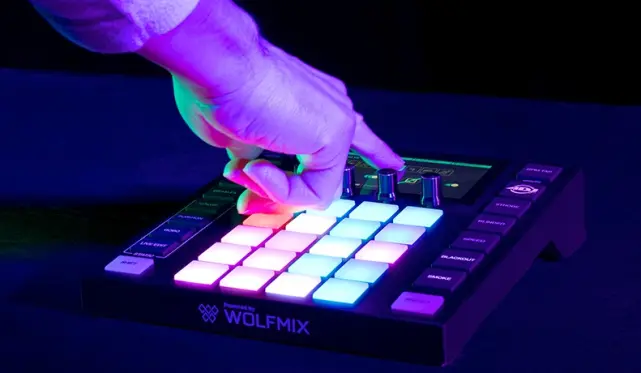

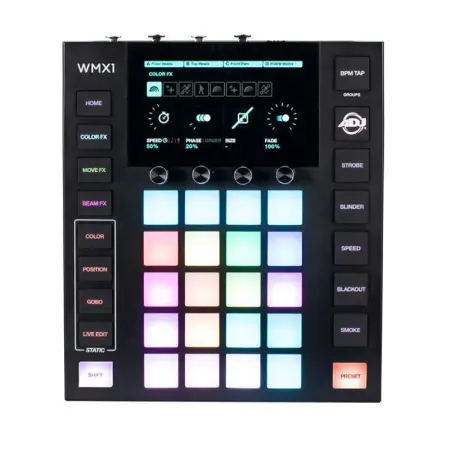

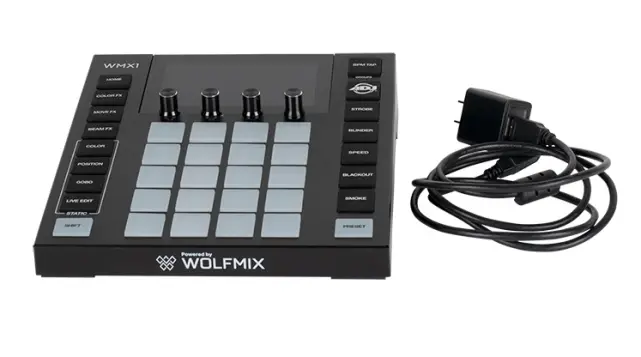

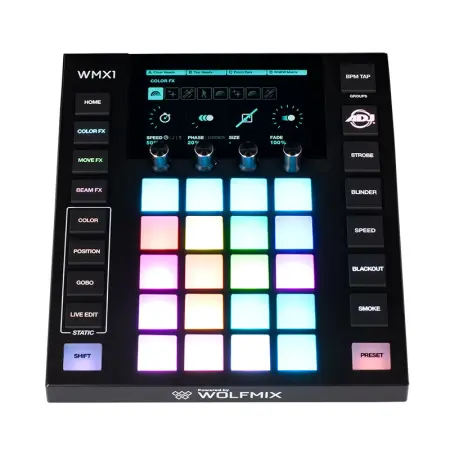

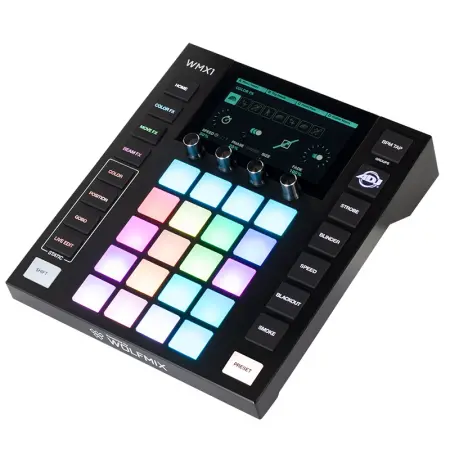

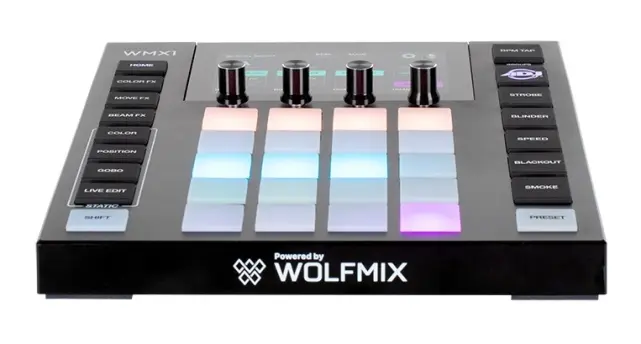

The ADJ Lighting WMX1, powered by Wolfmix, is a standalone lighting control system designed with the performer in mind. Featuring a 4.3” color touchscreen display and 37 backlit silicone buttons, it allows intuitive hands-on control of a DMX lighting setup. It features a toolbox of FX modules and eight independent fixture groups which allow for the simple creation of high-impact light shows on the fly without a computer. Ideal for mobile entertainers as well as bars, clubs, and entertainment venues, this compact but powerful controller puts creative lighting control at any user’s fingertips.

Setup
Standalone (no computer needed)
Compatible with any DMX device
Standard unit comes with 1 DMX universe but up to 3 additional universes are available
as add-ons, which are sold via the WTOOLS app.
Up to 680 fixtures & beams
Up to 50 fixture types
Up to 5000 fixture features (color/gobo etc...)
8 fixture groups
6 projects
15000+ available fixtures (3500+ on the controller)
DMX address, fixture order & group setup
Use as a DMX splitter with DMX universe mapping

Palettes & FX
Color FX module with 8 effect types & 16 definable colors
Move FX module with 8 effect types
Beam FX module with 8 effect types
6 Flash buttons for controlling Special FX, Strobe, Blinder, Speed,

Blackout & Smoke
Static color palette with 10 user definable colors per group & gradient control
Static position palette with 5 user definable positions per group with fade & fanning
Gobo palette with 5 user definable gobos per group
20 namable live edit buttons with flash triggering mode and ‘Park’ function
100 namable presets for storing snapshots with hold and fade timings
Preset playback cue list- all presets or per page of 20 presets

Control & Sync
Group and master dimming with encoder acceleration
Group FLASH, FULL and Blackout
16-bit Pan/Tilt control
Multi-beam LED bar control
FX music pulse sync from Microphone or Line-In
FX BPM sync with Ableton Link, OS2L or BPM TAP
Effect Speed, Phase, Order, Size, Fade, Fan & Flick
Live control of move FX registration point
Global FX speed and freeze control
Map DMX IN with group dimmer and patch to output channels*
WLINK - sync with another Wolfmix controller

Built-in tools
Fixture Builder
Fixture calibration tool, to limit the area of moving fixtures
X-Y touch-controlled positioning grid
RGBW touch controlled color picker
8-step real time sequencer for creating beam and move FX
Live view of DMX levels with default value override and DMX channel tester
Beam Editor to override Min and Max values used in generated FX

Other neat features
Calibrate and RGB, White, Amber, UV mixing with automatic fixed color wheel translation
Automatic matching of similar gobos across different fixture types
Timed release of flash and preset buttons
Fixture FLIP function, for reversing beam order
Fixture SPLIT function, for splitting up multi-FX bars
Lock full controller, or lock editing with a password
Project & fixture backup with WTOOLS app
Offline 3D visualization with Easy View & WTOOLS over USB*
Auto-recovery of active project (no manual saving needed)
Import different fixture setups into the same project
Starts in under 2 seconds. Starts sending DMX in under 1 second
Factory firmware startup recovery mode for times of crisis
*some features require an add-on purchase available through the WTOOLS app

Display
4.3” Color TFT with tinted glass
Capacitive touch

Encoders
Full body alloy
Incremental push with acceleration

Button pads
37 Silicone buttons with matt oil finishing
LED color backlit

Processing
220Mhz CPU with ARM core
8MB RAM
16MB Flash

Audio
Omnidirectional electret mic
3.5mm Jack Line-In
Analog adaptive peak detector

DMX
2x 3-pin DMX OUT XLR connectors
1x 5-pin DMX OUT XLR connector
1x 5-pin DMX IN/OUT XLR connector with WLINK

Housing
ABS Plastic
Powder-coated steel base plate with 100mm VESA (M4 6mm max)
Powder-coated steel reinforced back plate

Size & Weight
195 x 220 x 62 mm / 7.68 x 8.66 x 2.44 in
1070g / 2.36lb

ADJ WMX 1 (American DJ WMX-1)
