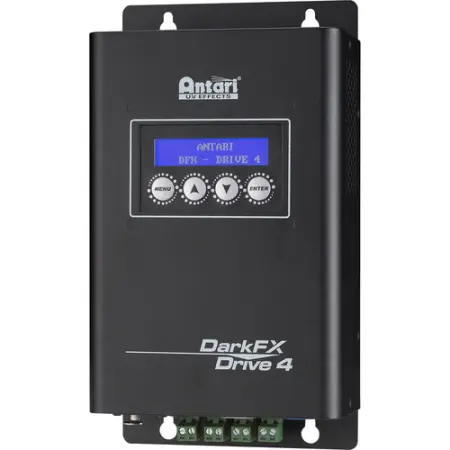

The Antari DarkFX Drive 4 is an IP20 rated compact driver exclusively designed for the Antari DarkFX Strip 510, Strip 510IP, and Spot 510IP high power UV fixtures. It features (4) bare wire terminal blocks which can support up to (4) Antari DarkFX fixtures, (2) DMX channels, dimmer, linear dimming curve, and strobe effects, a (4) button 2x16 digit control display, 5pin DMX and powerCON in/out connections, a metal housing with (4) keyhole slots for easy surface mounting, and a multi-voltage universal auto switching power supply (100-240v 50-60Hz).
Features:
DMX Controller for DarkFX Strip 510, Strip 510IP, and Spot 510IP
2 DMX Channels
0-20Hz Strobe Effect
Variable Dimming Curve Modes
Supports Up To (4) Fixtures
Multi-Voltage Universal Auto Switching Power Supply (100-240V 50-60Hz)
(4) Keyhole Slots for Easy Surface Mounting
Specifications:
CONTROL / CONNECTIONS
(2) DMX Channel Modes (1 /2)
4 Button 16 Digit Control Display
(4) 2 Bare Wire Terminal Blocks
5pin DMX In/Out
powerCON Power In/Out
SIZE / WEIGHT
Length: 8.5” (216mm)
Width: 5.3” (135mm)
Vertical Height: 2.9” (72.4mm)
Dry Weight: 3.6 lbs. (1.6 2kg)
ELECTRICAL
AC 100-240V - 50/60Hz
58W Max Power Consumption @110V
65W Max Power Consumption @220V
APPROVALS / RATINGS
CE | IP20
