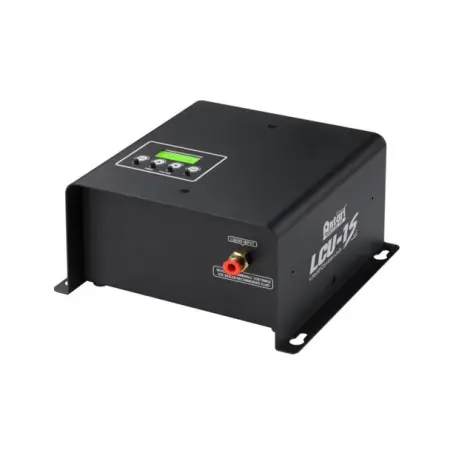

The latest LCU-1S comes with a LCD panel allows user to read and make setting with ease.
LCU-1S is preprogrammed for use with Z-1200II, S-100X, S-200X and SW-250, flow rate are adjusted to supply one unit at the time. An optional “Null” mode offers versatility for use with any model, running the pump at 100% output; enable it to supply up to maximum 4 units at a time.
LCU-1S can supply fluid to 35 meters long or 25 meters high at maximum, designed to meet most remote fluid supply application.
US model : AC 100-120V, 50/60Hz 0.35A
EU model : AC 220-240V, 50/60Hz 0.18A
5°C - 40°C (41°F - 104°F)
Manual, Timer, DMX 512
XLR 3-pin (DMX)
Z-8 Remote Control
SC-2 Remote Control
L 203 W 179 H 96 mm
(L7.99 W 7.05 H 3.78 inch)
3.3 kg (7.28 lbs )
