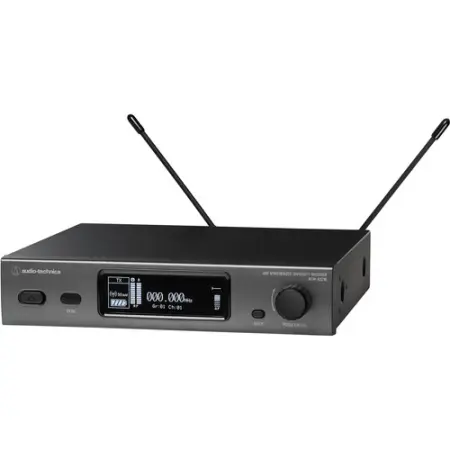

The Audio-Technica ATW-R3210 is a 3000 Series (4th generation) half-rack wireless receiver compatible with the ATW-T3201 bodypack transmitter and the ATW-T3202 handheld transmitter. It offers professional-level features for enhanced reliability and control, including true-diversity reception, a wide 60 MHz tuning range, and an intuitive interface with a dual-mode OLED display for easy operation. The receiver minimizes potential dropouts to deliver intelligible, natural audio for presenters, clergy, lecturers, and performers working in business and educational settings, houses of worship, theaters, or on musical stages.

The ATW-R3210 is housed in a rugged, full-metal chassis with removable antennas, well suited for rackmounting in portable flight cases or permanent installations. The receiver's auto-scan function searches 2395 selectable frequencies, seeking out a clean, interference-free channel for your audio transmission. The 3000 Series lets you set a clean backup frequency in advance, which you can quickly switch to with a press on the transmitter's multifunction button in the event of unexpected interference. The transmission range is up to 330'. Up to 40 mic channels can operate simultaneously in each frequency band.

A Reliable Receiver That's Easy to Use
The wide 60 MHz UHF bandwidth gives you 2395 selectable frequencies to choose from for interference-free audio transmission in an increasingly congested RF environment.
To prevent dropouts, the receiver's true-diversity reception compares incoming signals on two independent receiver circuits to ensure optimal RF quality.
Auto-frequency scanning automatically selects the most appropriate frequency for the area in which the wireless is operating.
Pre-coordinated frequency scan groups are available to simplify selection of usable frequencies in a multichannel wireless setup.
The bright, dual-mode OLED display can be switched between two modes: the standard view provides continuous indication of RF signal strength, frequency, mute status, audio modulation level, and transmitter (available separately) information, while the performance view highlights key metering.
The display also shows the transmitter's battery life and mute status.
Settings can be quickly adjusted using the control dial and BACK button located on the receiver's front panel. Settings can also be locked to prevent accidental changes.
The BNC sockets for the two detachable antennas provide bias power to active remote antennas and other in-line RF devices.
The ground-lift switch on the back panel helps eliminate audible hum caused by ground loops.
One balanced XLR audio output lets you connect the receiver to a mixing board or PA system.
The half-rack receiver chassis can be mounted alone in a standard 19" rack using the included mounting brackets and screws.
Enhance the Performance of Your System
Adding a pair of ATW-A49 LPDA directional remote antennas increases the range of your system and offers more protection against interference.
The optional RF Venue DISTRO4 four-channel antenna distribution system allows you to distribute the RF signal from the remote antennas to four discrete 3000 Series receivers.
Add Functionality to Your System
Audio-Technica offers a bodypack transmitter with lavalier and headset microphone options, as well as a handheld transmitter with a variety of mic capsules to choose from.
ATW-T3201 Bodypack Transmitter

The ATW-831cH cardioid lavalier provides crisp, full-sounding voice pickup, while also excelling as an instrument mic.
The comfortable BP892xcH earset mic and the discreet BP893xcH miniature MicroEarset mic provide exceptional clarity in spoken word applications.
The AT-GcH guitar cable lets you connect the bodypack transmitter to a guitar or bass.
ATW-T3202 Handheld Transmitter

The transmitter's interchangeable capsule design (with an industry-standard thread) allows you to choose an Audio-Technica capsule that’s ideal for your application and simply screw it onto the transmitter—including the ATW-C510, ATW-C710, ATW-C4100, ATW-C6100, ATW-C3300, and ATW-C5400 capsules as well as capsules from other manufacturers.

Audio-Technica ATW-R3210DE2 Specs:
System
Wireless Transmission Analog UHF
Number of RF Channels 2395
Diversity True Diversity
RF Frequency Band DE2: 470 to 530 MHz
RF Bandwidth 60 MHz
Frequency Step Size 25 kHz
Max Operating Range 328.1' / 100 m
Max Systems per Setup 40
Modulation FM
Receiver
Form Factor Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x External, BNC (Rear-Mount)
Antenna Bias Voltage 12 VDC, 160 mA (Combined)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4" Female Unbalanced Output
Gain Range -60 to 0 dB (2 dB Steps)
Audio Output Level XLR Output:
14 dBV
Frequency Response 31 Hz to 15.5 kHz (Dependent on Mic)
Network I/O None
Approximate RF Sensitivity 20 dBuV
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 VDC at 1 A, Center-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators 1 x Backlit OLED (AF Level, Channel, Frequency, Mute, RF Level, Transmitter Battery Status)
Dimensions 8.3 x 1.7 x 7.5" / 210 x 43.4 x 191 mm
Weight 38.8 oz / 1100 g

Audio Technica ATW-R3210DE2 (Audio-Technica ATWR3210DE2)
