Audio-Technica AEW-DA550C DISCONTINUED

This product has been discontinued by the manufacturer. Please contact us to find a replacement.
Description Q&A: 0 Reviews: 0 Financing
or $73/mo $0 Shipping, $0 Tax



or $ 73/mo $0 Shipping, $0 Tax


User Reviews

Average rating: 0 , based on 0 reviews
Read all reviews
Product Description

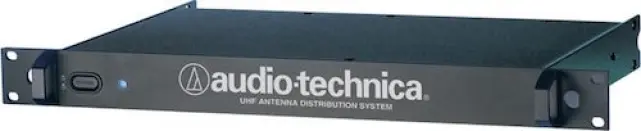

Audio Technica AEWDA550-C   ( Audio-Technica Antenna Distribution System )

Audio-Technica Antenna Distribution System - C Band (540-565 MHz)

UHF (540-565 MHz) active unity-gain antenna distribution system provides two "1-in, 4-out" RF channels; connects a pair of antennas to as many as four diversity receivers; cascade output provided as a directional coupler. AC pass-through allows daisy-chain AC hookup. Defeatable antenna power. Metal receiver chassis with reinforced mounting ears and rear rack mount capability. Includes detachable IEC power cable, IEC pass-through cable, ten RF cables, front-mount antenna cables and connectors, and four DC power cables. Mounts in a single 19" rack space.

Specifications:

Supports up to 4 diversity receivers:
1 In, 4 Out x2 (A/B)
RF Input BNC 50 ohms
RF Output BNC 50 ohms
RF Frequency Range 540-565 MHz
Attenuation / Gain Nominal Amplifier Gain: 0dB, +/- 3dB
Nominal Cascade Gain: -3dB, +/- 3dB
Operating Voltage 100-240 V AC, 50/60 Hz, auto-adjusting, 500W maximum. (Includes AC pass-through load)
Weight 5.9 lbs (2.7 kg)
Dimensions 19 x 1.92 x 11" (480 x 48.8 x 280mm)(WxHxD)

Show full description
