Audio-Technica ATW-1101
System 10

Pocket Transmitter & Digital Wireless Receiver

Use AT Mics with 4-pin UniPak Connector
Use with AT-GcW Guitar Cable

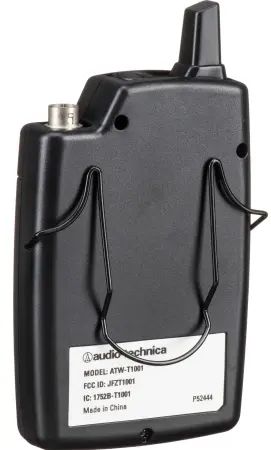

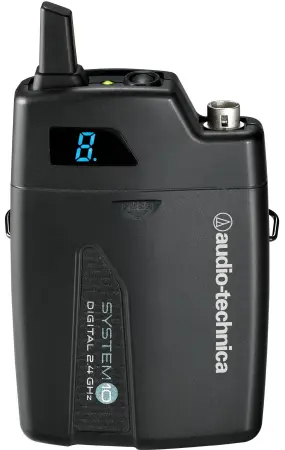

ATW-T1001 UniPak Transmitter

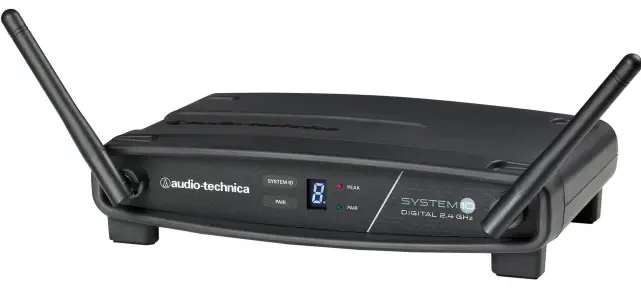

ATW-R1100 Digital Receiver
Use Up To 8 Systems Simultaneously
Digital 24-bit/48 kHz Wireless
TV Interference Free 2.4 GHz Range
Automatic Frequency Selection
Frequency, Time, & Space Diversity
Balanced XLR and Unbalanced 1/4" Outputs

The ATW-1101 System 10 from Audio-Technica is a digital wireless package that includes the ATW-R1100 digital receiver and the ATW-T1001 UniPak pocket transmitter. The system can be completed by adding an Audio-Technica Wireless Essentials series microphone or instrument cable. The ATW-1101 uses 24-bit, 48 kHz digital audio and operates free from TV interference in the 2.4 GHz frequency range. Built for expandability, you can use up to eight systems simultaneously.

When completed with a compatible Audio-Technica mic, the ATW-1101 system can be used to accommodate a wide variety of wireless applications. Choose from a selection of clip-on lavalier and headworn mics for speakers and singers, as well as clip-on instrument microphones to be used with horns, acoustic guitars and more. There are also instrument cables available for electric guitarists and bassists. The compatible mic or cable plugs into the included ATW-T1001 transmitter using a 4-pin UniPak connector. Designed to fit discretely into your pocket, the ATW-T1001 transmits the wireless signal to the included ATW-R1100 digital receiver which plugs into your mixer, sound system or amplifier depending on the application.

The ATW-1101 wireless system is engineered to quickly find the best signal possible, utilizing an automatic frequency selection function that chooses open bands for you when you "pair" your transmitter with the receiver. Also designed to combat interference, the ATW-1101 uses three different diversity techniques. Using frequency diversity, the system sends the wireless signal on two separate channels simultaneously and chooses the one with the clearest signal. It also transmits the signal across multiple intervals in time in order to fight multipath interference. This is known as time diversity. Furthermore, the system also makes use of space diversity, choosing between the receiver's dual antennas depending on which is picking up the best signal integrity.

Compatible with the PRO 8HEcW and ATW-1101/H92-TH headworn mics, the MT830cW lavalier mic, the AT-GcW guitar cable and others

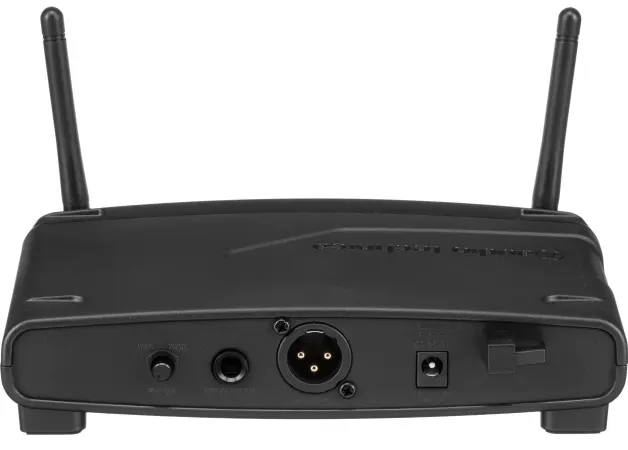

Balanced XLR output on receiver allows for connection to microphone level inputs on mixers
Unbalanced 1/4" output on receiver for connecting to guitar amp
Level controls on transmitter and receiver
Pair indicator illuminates on receiver when synced with transmitter
AF Peak indicator on receiver allows you to monitor the input stage on the transmitter for clipping

System Specifications
Operating Frequencies 2.4 GHz ISM band
Dynamic Range >109 dB (A-weighted), typical
Total Harmonic Distortion <0.05% typical
Operating Range 30 m (100') typical
Operating Temperature Range 0 to +40° C (32 to 104° F)
Frequency Response 20 Hz to 20 kHz
Audio Sampling 24 bit, 48 kHz
Receiver
Receiving System Diversity (frequency/time/space)
Output Connections 1x XLR, balanced
1x 1/4" (6.3 mm), unbalanced
Maximum Output Level Balanced: 0 dBV
Unbalanced: +6 dBV
Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A, center positive, switched mode external power supply
Dimensions 7.48 x 1.82 x 5.06" (190.0 x 46.2 x 128.5 mm)
Weight 10.2 oz (290 g)
Transmitter
RF Output Power 10 mW
Spurious Emission Following federal and national regulations
Input Connections 1x 4-pin locking connector

Wiring:
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +9V
Batteries 2x 1.5V AA (not included)
Battery Life >7 hours (alkaline)
Dimensions 2.76 x 4.21 x .98" (70.2 x 107 x 24.9 mm)
Weight 3.5 oz (100 g), without batteries

Audio Technica System 10 (Audio-Technica ATW1101)
