Audio-Technica ATW-1101/G
- DISCONTINUED

product discontinued

This product has been discontinued by the manufacturer. Please contact us to find a replacement.

*Discontinued

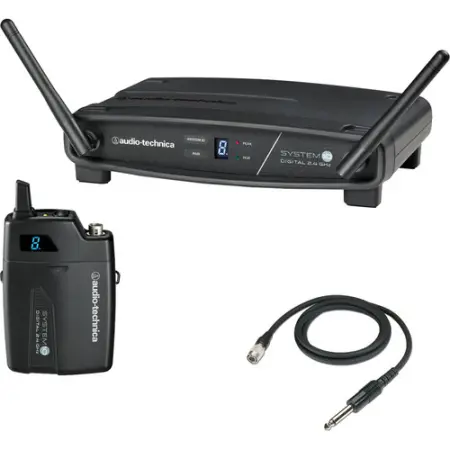

The Audio-Technica ATW-1101/G System 10 is a digital wireless solution for your electric guitar or bass rig that includes the ATW-R1100 digital receiver, the ATW-T1001 UniPak pocket transmitter and the AT-GcW guitar cable. The ATW-1101/G uses 24-bit, 48 kHz digital audio and operates free from TV interference in the 2.4 GHz frequency range. Built for expandability, you can use up to eight systems simultaneously.

The ATW-1101/G is designed for quick and easy setup. Specifically for electric guitarists and bassists, it comes with the 36" AT-GcW guitar cable for connecting your guitar or bass to the ATW-T1001 UniPak pocket transmitter. Just plug the cable's 1/4" phone plug connector into your guitar, then plug the locking 4-pin connector on the other side into the pocket transmitter. Finally, just use a guitar cable to connect the unbalanced output on the ATW-R1100 digital receiver to your guitar amplifier's input and you are ready to go.

The ATW-1101/G wireless system is engineered to quickly find the best signal possible, utilizing an automatic frequency selection function that chooses open bands for you when you "pair" your transmitter with the receiver. Also designed to combat interference, the ATW-1101/G uses three different diversity techniques. Using frequency diversity, the system sends the wireless signal on two separate channels simultaneously and chooses the one with the clearest signal. It also transmits the signal across multiple intervals in time in order to fight multipath interference. This is known as time diversity. Furthermore, the system also makes use of space diversity, choosing between the receiver's dual antennas depending on which is picking up the best signal integrity.

Features:

Unbalanced 1/4" output on receiver for connecting to guitar amp
Balanced XLR output on receiver allows for connection to microphone level inputs on mixers
Level controls on transmitter and receiver
Pair indicator illuminates on receiver when synced with transmitter
AF Peak indicator on receiver allows you to monitor the input stage on the transmitter for clipping

Specifications:

Operating Frequencies
2.4 GHz ISM band

Dynamic Range
>109 dB (A-weighted), typical

Total Harmonic Distortion
<0.05% typical

Operating Range 30 m (100') typical

Operating Temperature Range
0 to +40° C (32 to 104° F)

Frequency Response
20 Hz to 20 kHz

Audio Sampling
24 bit, 48 kHz

Receiver

Receiving System
Diversity (frequency/time/space)

Output Connections
1x XLR, balanced

1x 1/4" (6.3 mm), unbalanced

Maximum Output Level
Balanced: 0 dBV
Unbalanced: +6 dBV

Power Supply
100-240V AC (50/60 Hz) to 12V DC 0.5A, center positive, switched mode external power supply

Dimensions
7.48 x 1.82 x 5.06" (190.0 x 46.2 x 128.5 mm)

Weight
10.2 oz (290 g)

Transmitter

RF Output Power
10 mW

Spurious Emission
Following federal and national regulations

Input Connections
1x 4-pin locking connector


Wiring:
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +9V

Batteries
2x 1.5V AA (not included)

Battery Life
>7 hours (alkaline)

Dimensions
2.76 x 4.21 x .98" (70.2 x 107 x 24.9 mm)

Weight
3.5 oz (100 g), without batteries

Cable
Type
1/4" TS Phone to 4-pin Connector

Length
36" (0.9 m)
