ATW-1102
System 10 Stack-mount Digital Wireless System

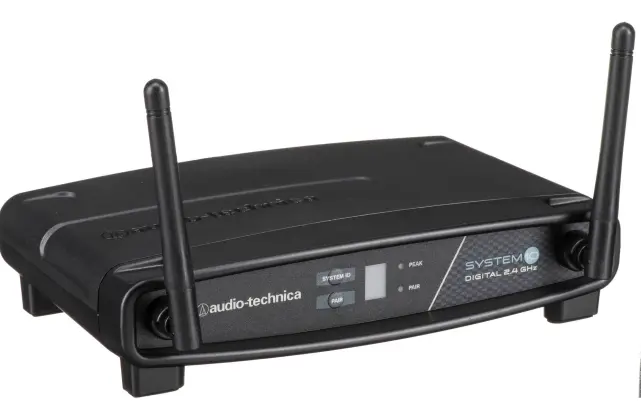

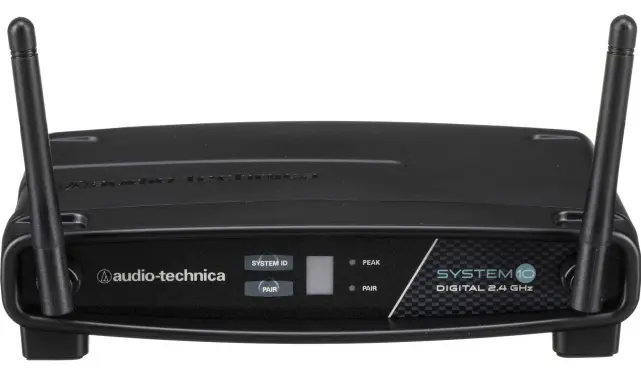

ATW-R1100 receiver
ATW-T1002 handheld dynamic unidirectional microphone/transmitter
2.4 GHz range – completely free from TV interference
Three levels of diversity assurance: frequency, time, & space
Automatic frequency selection
State-of-the-art digital receiver for reliable performance


ATW-1102
HIGH FIDELITY DIGITAL SYSTEM

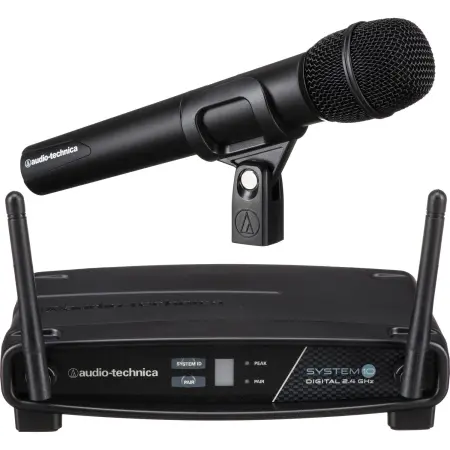

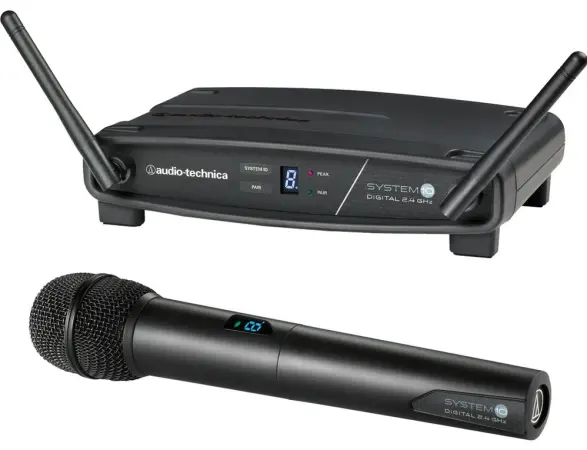

Audio-Technica’s System 10 is the most reliable digital high-fidelity wireless system of its generation. Designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Featuring stackable, contemporary styling, each configuration includes a mono ATW-R1100 receiver and an ATW-T1002 handheld dynamic cardioid microphone. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
2.4 GHz range – completely free from TV/ 3G interference
Three levels of diversity assurance: frequency, time, & space
Automatic frequency selection for seamless, interference-free operation
Automatic Frequency Selection. Plug & Play. Ease of use and reliability
Extremely easy operation with instantaneous channel selection, sync, and set-up
State-of-the-art digital receiver for reliable performance

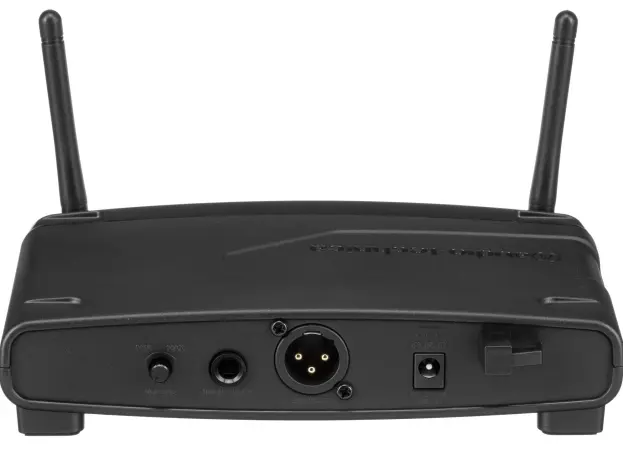

Balanced XLR and unbalanced 1/4” output jacks with level control

"2.4ghz digital system, 24 bits/48 khz”
The System 10 continuously monitors the activity in the 2.4GHz band and automatically adjusts the best signal in case of interference with WLAN routers, Bluetooth devices or other HF microphones. The 2.4 GHz frequency band keeps you away from licensing or frequency coordination issues, or frequencies used by DTV and 4G.

“Automatic frequency selection”
The System 10 automatically changes its frequency. Unlike other systems on the market that attach to 2 or 4 frequency, the System 10 will constantly "monitor" the frequencies and switch if necessary. Thus, there are always a good 2 frequencies in the system, and the user does not need to manually intervene.

“A reliable multiplex system”
System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.


Overall System
Operating Frequencies 2.4 GHz ISM band
Frequency Response 20 Hz to 20 kHz Depending on microphone type
Operating Range 30 m (100') Open range env. with no interfering signals
Dynamic Range >109 dB (A-weighted), typical
Total Harmonic Distortion <0.05% typical
Operating Temperature Range 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Audio Sampling 24 bit / 48 kHz
Latency 3.8 ms
Receiver
Receiving System Diversity (frequency/time/space)
Maximum Output Level XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
Dimensions 190 mm W x 46.2 mm Hx 128.5 mm D
Weight 290g
Accessories Included Power supply

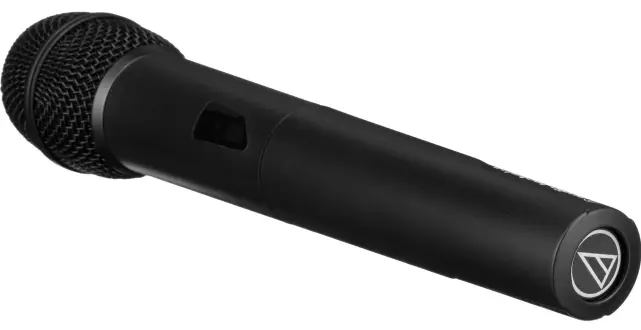

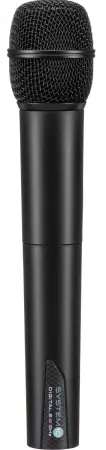

Handheld Transmitter
RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Battery Type Two 1.5V AA (not included)
Battery Life >7 hours (alkaline) (Depending on battery type and use pattern)
Dimensions 254.8 mm (10.03") long, 50.0 mm (1.97") diameter
Net Weight 280g
Accessories Included AT8456a Quiet-Flex™ stand clamp

Audio Technica ATW1102 (Audio-Technica ATW 1102)
