This product has been discontinued by the manufacturer. Please contact us to find a replacement.

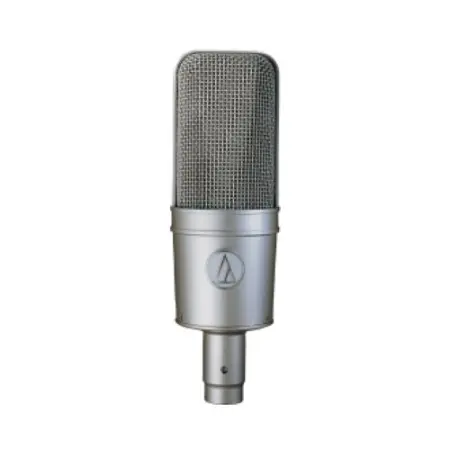

The rich, warm sound takes you back to the classic F.E.T. studio microphones. But there’s nothing remotely old-fashioned about the technology behind that vintage sound. The AT4047/SV studio condenser’s dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.
AT4047/SV. It’s another in a venerable line of studio artists’ dreams come true: the 40 Series, from Audio-Technica.
Features:
Designed for critical studio, live sound and broadcast applications
Transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
Exceptionally low self-noise, wide dynamic range and high SPL capability
Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
Vintage silver-matte finish on microphone and shock mount
Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
Switchable 80 Hz hi-pass filter and 10 dB pad
Custom shock mount provides superior isolation
Specifications:
ELEMENT:Externally-polarized (DC bias) condenser
POLAR PATTERN:Cardioid
FREQUENCY RESPONSE:20-18,000 Hz
LOW FREQUENCY ROLL-OFF:80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY:-35 dB (17.7 mV) dB re 1V at 1 Pa
IMPEDANCE:250 ohms
MAXIMUM INPUT SOUND LEVEL:149 dB SPL, 1 kHz at 1% T.H.D.;159 dB SPL, with 10 dB pad (nominal)
NOISE:9 dB SPL
DYNAMIC RANGE:(typical) 140 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO:85 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS:48V DC, 3.0 mA typical
SWITCHES:Flat, roll-off;10 dB pad (nominal)
WEIGHT:14.5 oz (410 g)
DIMENSIONS:6.69" (170.0 mm) long,2.10" (53.4 mm) maximum body diameter
OUTPUT CONNECTOR:Integral 3-pin XLRM-type
ACCESSORIES FURNISHED:AT8449a/SV shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
AUDIO-TECHNICA CASE STYLE:R1
