This product has been discontinued by the manufacturer. Please contact us to find a replacement.

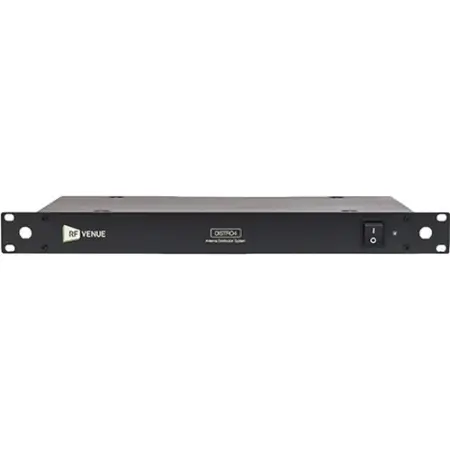

The RF and DC 4-Channel Distribution System from RFvenue is designed to provide DC power and split the signal from 2 antennas between up to 4 optional wireless receivers. RFvenue includes 4 BNC cables for splitting the RF signal as well as 4 DC jumpers to provide your wireless receivers with power.
RF Venue DISTRO4 Specs
Electrical
Operating Frequency 470 to 870 MHz
Bandwidth 400 MHz
Gain -0.5 to 3 dB
Impedance 50 Ω
Output Connector Isolation 25 dB
Third Order Intercept Point (3 OIP) 24 dBm
Voltage Input AC Voltage: 90 to 260 V, Switching
Output DC Voltage: 12 to 18 V
Output DC Current: 2000 mA
General
RF Connector BNC
Dimensions (HxWxD) 1.75 x 19.00 x 10.00" (44 x 482 x 253 mm)
Weight 4.75 lb (2.15 kg)
