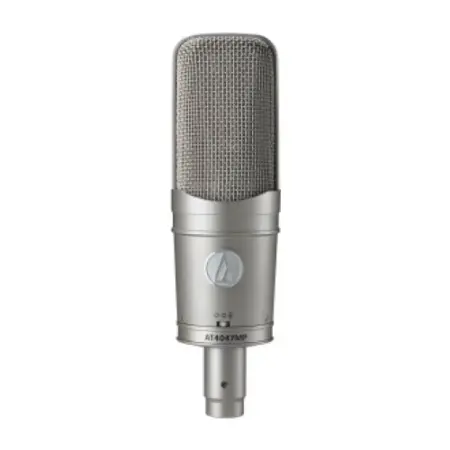

Audio-Technica’s AT4047MP delivers vintage sound in a multi-pattern design with selectable omnidirectional, cardioid, and figure-of-eight polar patterns. The microphone’s transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.

Features:
Three switchable polar patterns: cardioid, omnidirectional, figure-of-eight

Engineered to meet the critical acoustic requirements of professional recording, broadcast and sound reinforcement

Transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs

Exceptionally low self-noise, wide dynamic range and high SPL capability

Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone

Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity

Vintage silver-matte finish on microphone and shock mount

Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

Custom shock mount provides superior isolation

Integral 80 Hz high-pass filter switch and 10 dB pad switch

Certified by the METAlliance (Music Engineering and Technology Alliance)


Specifications:
ELEMENT:Externally-polarized (DC bias) condenser
POLAR PATTERNS:Cardioid,Omnidirectional,Figure-of-eight
FREQUENCY RESPONSE:20-18,000 Hz
LOW FREQUENCY ROLL-OFF:80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY:-42 dB (7.9 mV), re 1V at 1 Pa
IMPEDANCE:100 ohms
MAXIMUM INPUT SOUND LEVEL:155 dB SPL, 1 kHz at 1% T.H.D.;165 dB SPL, with 10 dB pad (nominal)
NOISE:14 dB
DYNAMIC RANGE:(typical) 141 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO:80 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS:48V DC, 3.4 mA typical
SWITCHES:Polar selection;Flat, roll-off;10 dB pad (nominal)
WEIGHT:524 g (18.5 oz)
DIMENSIONS:188.0 mm (7.40") long,53.4 mm (2.10") maximum body diameter
OUTPUT CONNECTORS:Integral 3-pin XLRM-type
ACCESSORIES FURNISHED:AT8449a/SV shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
AUDIO-TECHNICA CASE STYLE:R1

Audio Technica AT4047MP (Audio-Technica AT-4047MP)
