Audio-Technica RF Over Fiber Single Ch System OPTIX1-S3-US

$3,999.00 new

VIP Image

Get $60 gift card back. Or Join VIP for up-front sitewide discounts.


or
Pay $0 Tax   $0 Shipping   0% Financing
Available - Call to confirm exact lead time

The OPTIX Series 3 RF-over-Fiber Antenna Distribution System from RF Venue includes a transmitter module and a receiver module. The transmitter module converts RF signals arriving from an antenna source into a single-mode optical signal. It sends that signal down a length of fiber-optic cable (available separately) to the receiver module, which converts the source signal back into RF. Both modules feature three multicolor LED indicators for RF and DC status.

This system extends the range of antenna placement without any signal loss over the optical cable. It features a usable dynamic range of 60 dB, 175 to 960 MHz operating frequency, and 50-ohm impedance. User configurable controls allow you to manage signal level, apply DC power for active antennas or amplifiers, and directly monitor outputs to dial in performance. This system is compatible across VHF, UHF, and the 900 MHz band.

Fiber optic cable required

RF Venue OPTIX1-S3-US Specs:
General
Dynamic Range 60 dB
Input Noise -100 dBm
Signal -25 dBm Max
Operating Frequency 175 - 213, 470 - 698, 900 - 960 MHz
VSWR < 2.5:1
Impedance 50 Ohms
RF Input Power Operating Range < 0 dBm / 1 mW
Operating Temperature -13 to 167°F / -25 to 75°C

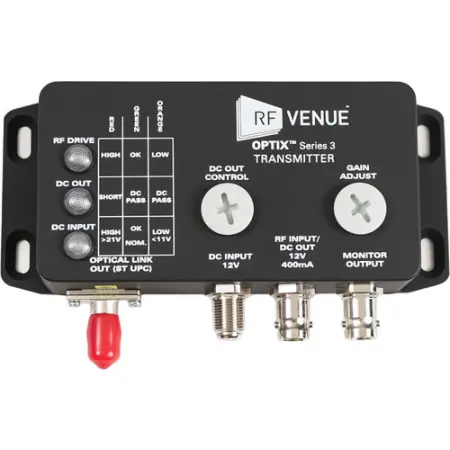

Transmitter
Indicator 3 x 3-Color LED, RF/DC Status
Connectors 1 x 12 VDC Power Input
1 x BNC Female, RF Input / 12 VDC Output
1 x BNC Female, Monitor Loop Output
1 x ST/UPC, Optical Link Output
Control 1 x DC Out (Preset: 0)
1 x Gain Adjust (Preset: 9)
Max Power Draw 166 mA (Approx) at 12 VDC
Optical Wavelength 1310 nm
Dimensions 5.4 x 3 x 1.3" / 138 x 77 x 33 mm (Including Flange and Connectors)
Weight 7.9 oz / 223 g
Receiver
Indicator 3 x 3-Color LED, RF/DC Status
Connectors 1 x 12 VDC Power Input
2 x BNC Female, RF Output
1 x ST/UPC, Optical Link Input
Controls 1 x Gain Mode (Preset: 1)
1 x Output Level Adjust (Preset: 3)
Operating Voltage 5 - 22 V
Power Draw 258 mA (Approx) at 12 VDC
Power Supply Voltage 12.25 VDC
Dimensions 5.4 x 3 x 1.3" / 138 x 77 x 33 mm (Including Flange and Connectors)
Weight 8.1 oz / 229 g

Audio Technica OPTIX1-S3-US (Audio-Technica OPTIX1-S3US)
