Audio-Technica System 10 Boundary microphone ATW-1366
- DISCONTINUED

product discontinued

This product has been discontinued by the manufacturer. Please contact us to find a replacement.

*Discontinued

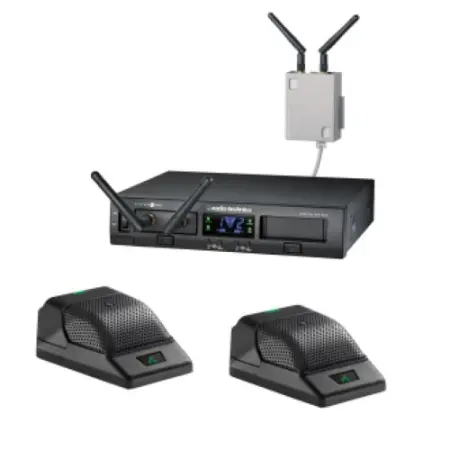

ATW-RC13 Rack-mount receiver chassis, ATW-RU13 x2 receiver unit and ATW-T1006 x2 boundary microphone/transmitter.

Audio-Technica’s System 10 PRO Rack-Mount digital wireless system provides the same interference-free operation in the 2.4 GHz range (outside TV bands) as the original System 10 wireless system but with expanded features and versatility. The durable half-rack chassis is equipped to house two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 328 feet away) via Ethernet cable. Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with each system, creating a stable, multichannel system with the simultaneous use of up to 10 channels.

Like all the products in the System 10 wireless family, the PRO Rack-Mount features 24-bit operation, easy setup, clear, natural sound quality, and three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Space Diversity uses two antennas on each transmitter and receiver unit to maximize signal integrity.

Each System 10 PRO Rack-Mount system includes an ATW-RC13 receiver chassis with rack-mount adapters, one or two ATW-RU13 receiver units with corresponding AT8690 receiver unit mounting brackets, a joining plate (for dual-channel systems only), one RJ12 cable, one AC adapter, and one or two transmitters. Transmitter options include the ATW-T1001 cW-style body-pack transmitter, ATW-T1002 handheld transmitter, ATW-T1006 boundary microphone/transmitter and the ATW-T1007 microphone desk stand transmitter. Both the receiver chassis and transmitters feature easy-to-read displays.

Features:
Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance

Operates in the 2.4 GHz range – completely free from TV interference

Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility

Up to five chassis (ten receiver units) can be linked and used simultaneously

Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations

Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status

Automatic frequency selection for seamless, interference-free operation

Extremely easy operation with instantaneous channel selection, sync, and setup

Three levels of diversity assurance: frequency, time & space

Ground-lift switch helps eliminate audible hum caused by ground loops


Specifications:
OVERALL SYSTEM SPECIFICATIONS:
Operating Frequencies:2.4 GHz ISM band (2400 to 2483.5 MHz)
Dynamic Range:>109 dB (A-weighted), typical
Total Harmonic Distortion:<0.05% typical
Operating Range:60 m (200') Open range env. with no interfering signals
Operating Temperature Range:0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Frequency Response:20 Hz to 20 kHz Depending on microphone type
Maximum Simultaneous Use:(Recommended) 200' minimum

RECEIVER SPECIFICATIONS:
Receiving System:Diversity (frequency/time/space)
Output Connectors:Remote Receiver Connector: RJ45
Link Connector: RJ12
Maximum Output Level:XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply:100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
Operating Temperature Range:40° F (4° C) to 110° F (43° C)
Dimensions:209.8 mm (8.26") W x 44 mm (1.73") H x 169.3 mm (6.67") D
Net Weight:940 grams (33.2 oz)
Accessory Included:Power supply
Accessories Included:AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet

BODY-PACK TRANSMITTER SPECIFICATIONS:
RF Power Output:10 mW
Spurious Emissions:Following federal and national regulations
Input Connections:Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Batteries:Two 1.5V AA not included
Battery Life:>7 hours (alkaline) Depending on battery type and use pattern
Dimensions:70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Net Weight:100 grams (3.5 oz) without batteries

HANDHELD TRANSMITTER SPECIFICATIONS:
RF Power Output:10 mW
Spurious Emissions:Following federal and national regulations
Batteries:Two 1.5V AA not included
Battery Life:>7 hours (alkaline) Depending on battery type and use pattern
Dimensions:254.8 mm (10.03") long, 50.0 mm (1.97") diameter
Net Weight:280 grams (9.9 oz) without batteries
Accessory Included:AT8456a Quiet-Flex™ stand clamp
