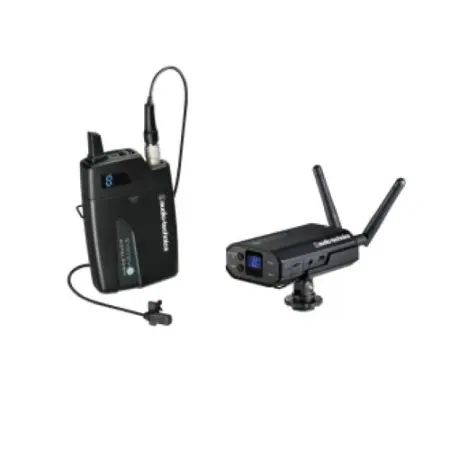

ATW-R1700 receiver and ATW-T1001 body-pack transmitter with MT830cW omnidirectional lavalier microphone

With its compact and portable design, the System 10 Camera-Mount high-fidelity digital wireless system is ideally positioned to capture media on the go. Perfect for video production, electronic news gathering (ENG) and every mobile application in between, the receiver features multiple mounting options to accommodate a variety of cameras and recording devices.

Like all of the products in the System 10 digital wireless family, the Camera Mount provides three levels of diversity assurance: frequency, time and space. Instantaneous channel selection, sync and setup make the Camera-Mount extremely easy to use, while its digital 24-bit/48 kHz wireless operation provides the ultimate in sound quality and dependable performance. Also, as the receiver operates in the 2.4 GHz range, it remains completely free from TV interference at all times.

Available in handheld, lavalier and body-pack configurations, each System 10 Camera-Mount wireless system includes a camera shoe mount in addition to the receiver and transmitter. The AT8691 camera shoe dual mount and the AT8350 3.5 mm to XLR output cable are available separately.

Features:
Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance

Operates in the 2.4 GHz range – completely free from TV interference

Ultra compact receiver size with multiple mounting options

Selectable balanced and unbalanced output jacks with level control for use with most cameras and recording devices

Internal rechargeable 12-hr battery

Separate headphone port and volume control for local audio monitoring

Multi-pairing function to link a single receiver with up to eight body-pack or handheld transmitters

Three levels of diversity assurance: frequency, time & space

Automatic frequency selection for seamless, interference-free operation

Extremely easy operation with instantaneous channel selection, sync and setup


Specifications:
OVERALL SYSTEM SPECIFICATIONS:
Operating Frequencies:2.4 GHz ISM band (2400 to 2483.5 MHz)
Dynamic Range:>109 dB (A-weighted), typical
Total Harmonic Distortion:<0.05% typical
Operating Range:30 m (100') radius, 60 m (200') diameter typical
Open range environment with no interfering signals
Operating Temperature Range:0° C to +40° C (32° F to 104° F)
Battery performance may be reduced at very low temperatures
Frequency Response:20 Hz to 20 kHz
Depending on microphone type
Maximum Simultaneous Use:(Recommended) 200' minimum
Audio Sampling:24 bits / 48 kHz

RECEIVER SPECIFICATIONS:
Receiving System:Diversity (frequency/time/space)
Maximum Output Level:3.5 mm (1/8"), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
Power Supply:100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
Battery Internal Battery: 3.7V rechargeable Li-ion battery
Battery Rating: 5.5 Wh 1,460 mAh
Battery Life:12 hours Depending on environmental conditions
Battery Charging Time: 4 hours 30 minutes Depending on environmental conditions
Charging Temperature Range: 5° C to +35° C (41° F to 95° F)
Operating Temperature Range:40° F (4° C) to 110° F (43° C)
Dimensions:56.0 mm (2.20") W x 91.4 mm (3.60") H x 27.8 mm (1.09") D
Net Weight:105 grams (3.7 oz)
Accessories Included:Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8") stereo cable

BODY-PACK TRANSMITTER SPECIFICATIONS:
RF Power Output:10 mW
Spurious Emissions:Following federal and national regulations
Input Connections:Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Batteries:Two 1.5V AA not included
Battery Life:>7 hours (alkaline) Depending on battery type and use pattern
Dimensions:70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Net Weight:100 grams (3.5 oz) without batteries

HANDHELD TRANSMITTER SPECIFICATIONS:
RF Power Output:10 mW
Spurious Emissions:Following federal and national regulations
Batteries:Two 1.5V AA not included
Battery Life:>7 hours (alkaline) Depending on battery type and use pattern
Dimensions:254.8 mm (10.03") long,50.0 mm (1.97") diameter
Net Weight:280 grams (9.9 oz) without batteries
Accessory Included:AT8456a Quiet-Flex™ stand clamp
