Audio-Technica System 10 Digital Wireless ATW-1101/H

$399.95 new

VIP Image

Get $57 gift card back. Or Join VIP for up-front sitewide discounts.


or
Pay $0 Tax   $0 Shipping   0% Financing
Available - Call to confirm exact lead time

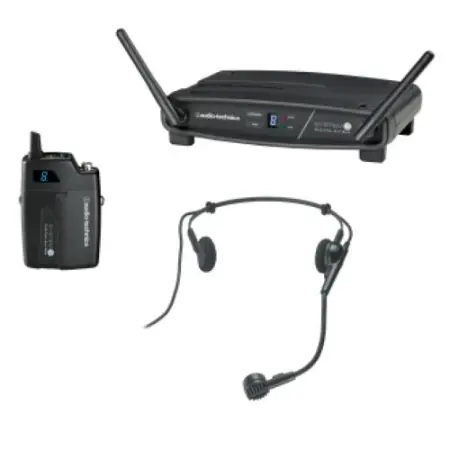

ATW-R1100 receiver and ATW-T1001 body-pack transmitter with PRO 8HEcW headworn microphone.

Audio-Technica’s System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.

System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

Featuring stackable, contemporary styling, System 10 is available in multiple system configurations, with handheld vocal microphone/transmitters and cW-style body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars. Each configuration includes the ATW-R1100 receiver and either a body-pack transmitter or handheld microphone/ transmitter. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

Features:
Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance

2.4 GHz range – completely free from TV interference

Three levels of diversity assurance: frequency, time, & space

Automatic frequency selection for seamless, interference-free operation

Extremely easy operation with instantaneous channel selection, sync, and set-up

State-of-the-art digital receiver for reliable performance

Balanced XLR and unbalanced 1/4” output jacks with level control


Specifications:
OVERALL SYSTEM SPECIFICATIONS:
Operating Frequencies:2.4 GHz ISM band (2400 to 2483.5 MHz)
Dynamic Range:>109 dB (A-weighted), typical
Total Harmonic Distortion:<0.05% typical
Operating Range:30 m (100') typical
Open range environment with no interfering signals
Operating Temperature Range:0° C to +40° C (32° F to 104° F)
Battery performance may be reduced at very low temperatures
Frequency Response:20 Hz to 20 kHz
Depending on microphone type
Maximum Simultaneous Use:(Recommended) 200' minimum

RECEIVER SPECIFICATIONS:
Receiving System:Diversity (frequency/time/space)
Maximum Output Level:XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply:100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
Operating Temperature Range:40° F (4° C) to 110° F (43° C)
Dimensions:190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
Net Weight:290 grams (10.2 oz)
Accessory Included:Power supply

BODY-PACK TRANSMITTER SPECIFICATIONS:
RF Power Output:10 mW
Spurious Emissions:Following federal and national regulations
Input Connections:Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Batteries:Two 1.5V AA not included
Battery Life:>7 hours (alkaline) Depending on battery type and use pattern
Dimensions:70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Net Weight:100 grams (3.5 oz) without batteries

HANDHELD TRANSMITTER SPECIFICATIONS:
RF Power Output:10 mW
Spurious Emissions:Following federal and national regulations
Batteries:Two 1.5V AA not included
Battery Life:>7 hours (alkaline) Depending on battery type and use pattern
Dimensions:254.8 mm (10.03") long,50.0 mm (1.97") diameter
Net Weight:280 grams (9.9 oz)without batteries
Accessory Included:AT8456a Quiet-Flex™ stand clamp
