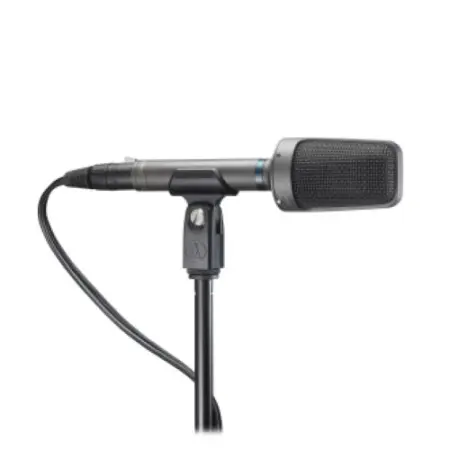

Ideal for video camera-mount use, stereo field recording, interviews and home recording, Audio-Technica’s versatile AT8022 stereo condenser offers a compact housing and the pristine sound quality of a live sound field. Its coincident capsule configuration produces an X/Y stereo image in a small housing. The microphone is supplied with two cables for use with either pro or consumer gear. It offers switchable low-frequency roll-off and the convenience of battery or phantom power. The microphone is fully RoHS-compliant – free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).
Features:
Innovative capsule configuration produces accurate stereo image in smaller housing
Compact, lightweight design is perfect for video camera-mount use as well as for stereo field recording, interviews and home recording
Ideal for use with handheld digital recording devices
Operates on battery or phantom power—for use with pro or consumer equipment
Switchable low-frequency roll-off
Includes two cables: one balanced (two 3-pin XLRM-type connectors at output); one unbalanced (3.5 mm TRS at output)
RoHS-compliant – free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)
Specifications:
ELEMENT:Fixed-charge back plate permanently polarized condenser
POLAR PATTERN:X/Y Stereo
FREQUENCY RESPONSE:20-15,000 Hz
LOW FREQUENCY ROLL-OFF:80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY:Phantom: –38 dB (12.5 mV) re 1V at 1 Pa
Battery: –38 dB (12.5 mV) re 1V at 1 Pa
CHANNEL BALANCE:<2.5 dB
IMPEDANCE:Phantom: 250 ohms Battery: 300 ohms
MAXIMUM INPUT SOUND LEVEL:Phantom: 128 dB SPL, 1 kHz at 1% T.H.D.
Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE:(typical) Phantom: 109 dB, 1 kHz at Max SPL
Battery: 101 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO:75 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS:11-52V DC, 2 mA typical (each channel)
BATTERY TYPE:1.5V AA/UM3
BATTERY CURRENT/LIFE:0.7 mA / 700 hours typical (alkaline)
SWITCH:Battery On/Off; Flat, roll-off
WEIGHT:247 g (8.7 oz)
DIMENSIONS:186.0 mm (7.32") long,47.6 mm (1.87") head diameter
21.0 mm (0.83") maximum body diameter
OUTPUT CONNECTOR:Integral 5-pin XLRM-type
CABLES:Balanced: 2.0 m (6.5') long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end;
Unbalanced: 0.6 m (2.0') long stereo cable with 5-pin XLRF-type connector at microphone end and 3.5 mm TRS connector at output end
ACCESSORIES FURNISHED:AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; battery; soft protective pouch
AUDIO-TECHNICA CASE STYLE:S12
