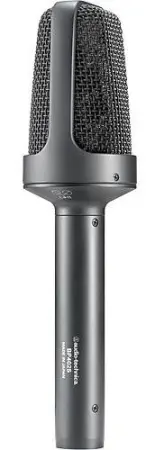

The Audio-Technica BP4025 X/Y Stereo Microphone captures ambiance, live performances and any audio source with accurate stereo imaging and detailed frequency response. The capsule features two condenser capsules mounted in an X/Y configuration. Its innovative coincident capsule configuration produces accurate stereo image in a smaller housing.

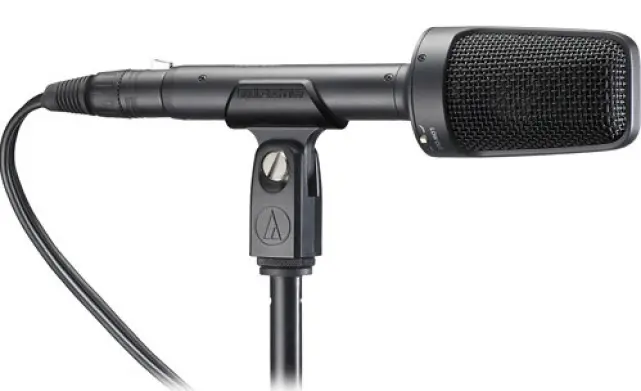

The BP4025 terminates to a 5-pin XLR output and the supplied cable provides dual 3-pin XLR connectors for stereo connections to cameras, mixer channels, portable recorders, etc. The microphone requires 11-52VDC phantom power and includes the 5-pin to dual 3-pin XLR cable, stand adapter, windscreen and protective pouch.

Stereo recording of ambiance, musical performances, vocals, and more
5-pin output and dual 3-pin XLR cable is supplied
Coincidence element mounting for smaller capsule profile
Rugged construction

Audio-Technica BP4025 Specs
Transducer Fixed-charge back plate permanently polarized condenser
Polar Pattern X/Y Stereo
Frequency Response 20Hz to 17kHz
Dynamic Range (Typical) 131dB, 1kHz at Max SPL
Signal-to-Noise Ratio 80dB, 1kHz at 1Pa
Maximum Input Sound Level 145dB SPL, 1kHz at 1% T.H.D.;
155dB SPL, with 10 dB pad (nominal)
Power Requirements 11-52VDC, 7mA typical (both channels total)
Output Impedance 170 ohms
Output Connectors 5-pin XLR Output (5-Pin to dual 3-Pin XLR Cable Supplied)
Pad -10dB
Low Frequency Roll-Off 80Hz, 12dB / octave
Dimensions (LxDiameter) 7.32 x 1.87" (186.0 x 47.5mm)
Weight 9.5 oz (269g)

Audio Technica BP4025 (Audio-Technica BP-4025)
