Avante Audio Imperio Dual 4.75" Woofers Active Line Array with 240W Power Amplifier

Key Features:
240W Class RMS D Amplifier Module
Switching Power Design
LED Power/Signal/Clip Indicator
24-Bit DSP Selectable Configurations

The Imperio Dual 4.75" Woofers Active Line Array from Avante Audio is a 240W RMS Class D amplifier with two 4.75" Neodymium woofers and six 1.75" IDVAT HF drivers. It is designed to be used with the Imperio subwoofer and Imperio pole (available separately). This amplifier has a switching power design, an LED power/signal/clip indicator, and 24-bit DSP selectable configurations. It features a 3-pin XLR powerCON input and output. The two 4.75" Neodymium woofers have a 1" voice coil. They have a frequency response of 150 Hz to 20 kHz and an impedance of 4 Ohms.

1.0mm steel grill
0, 4, 8, and 12° splay angles
Integrated rigging

Avante Audio IMP092 Specs:
Studio Monitor
Monitor Type Active 2-Way
Enclosure Sealed
Power Rating 240 W RMS
600 W Peak
Impedance 4 Ohms
Drivers 2 x 4.75" / 12.06 cm Metal Woofer with 1" / 2.54 cm Voice Coil
6 x 1.75" / 4.45 cm Dome
Amplification 1 x HF Amplifier: Class-D Rated at 240 W RMS

Performance
Frequency Range 150 Hz to 20 kHz
Maximum Sound Pressure Level (SPL) 117 dB
Dispersion 90 x 15° (Horizontal x Vertical)
Speaker Sensitivity 6 dB

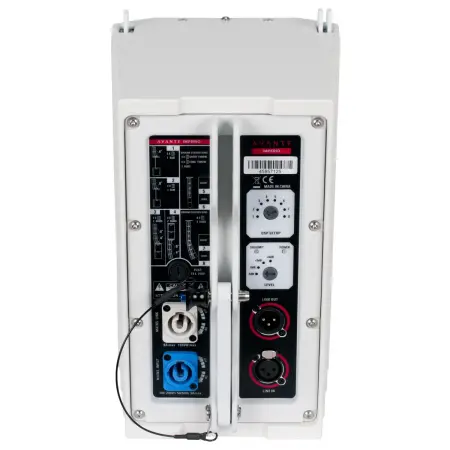

Connectivity
I/O 1 x XLR Analog Input
1 x XLR Analog Output

Power
AC Input Power 100 to 240 VAC, 50/60 Hz

General
Enclosure Material ABS
Certifications FCC, as per Manufacturer
Dimensions (W x H x D) 7.3 x 12.8 x 8.8" / 18.5 x 32.5 x 22.4 cm
Weight 14.0 lb / 6.4 kg

ADJ Imperio-White (Avante Imperio-W)
