BBE DS48
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued
BBE DS48 (BBE DS 48)

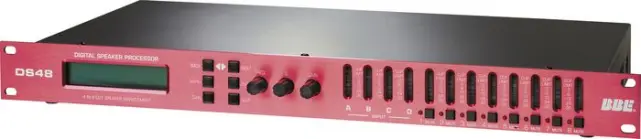

BBE DS48 4-Input / 8-Output Digital Loudspeaker Management Processor
The BBE DS48 loudspeaker management system features 4 inputs and 8 outputs
with 10 configuration templates.
A choice of operating and crossover modes include 4 x 2-way, 2 x 3-way + 2 aux,
2 x 4-way, 1 x 5-way + 3 aux, mono dist., stereo dist., LCRS with mono subs, 4 x
4 processor and muted/flat startup.
Other notable features include high performance limiters on each output,
providing complete control over attack, release and threshold parameters;
variable high and low pass filters; and your choice of 6dB, 12dB,18dB, 24dB,
48dB Butterworth, Linkwitz-Riley or Bessel frequency response curve.
Independent control of each high and low pass filter allows asymmetric crossover
bands to be created. The DS48 can also be controlled from a PC via the DS24's
RS232 connection with the included software. Along with XLR input/output
connectors, DS48 comes complete with selectable line voltages between 90 and 250
VAC operations.
Carrying a 5 year warranty, the DS48 is recommended for live sound rigs and
installations.
BBE DS48 4-Input / 8-Output Digital Loudspeaker Management Processor
Features:
24-bit AD/DA, 48k sampling rate
Internal 32-bit DSP processing
Parametric EQ provides -40dB to +6dB of gain with frequency gain and bandwidth
adjustment
Full limiter for each output
7ms delay per output
RS-232 computer control
As always, BBE 5 year warranty
BBE tweaks it perfectly!
