8" Woofer & 1" Tweeter
Bi-Amped Class-D Design
40 Hz to 20 kHz Frequency Response
102 dB SPL

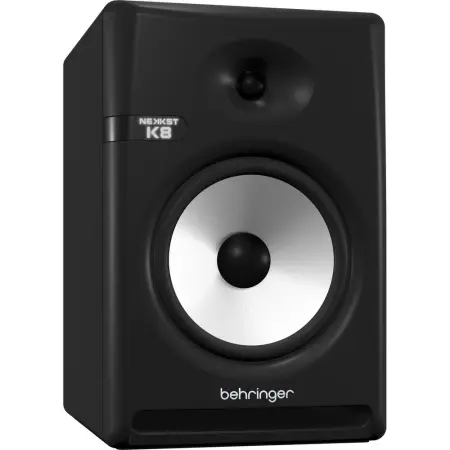

The NEKKST K8 from Behringer is a bi-amped, powered studio monitor designed for critical listening in a mixing environment. It features a 1" tweeter, an 8" woofer, a frequency response of 40 Hz to 20 kHz, a maximum SPL of 102 dB, and a fixed crossover at 3 kHz.
For inputs, this monitor provides an XLR connection point, as well as a 1/4" TRS balanced and an RCA unbalanced termination. It features switchable low, midrange, and high EQs on the back for help in tailoring the monitor to your specific room environment, as well as a variable input trim. It allows for a maximum output-power-handling at 150W, and works quite comfortably at 150W.
Its proprietary waveguide technology aims to provide acoustic dispersion and a large sweet spot for accurate monitoring, while its bi-amped Class-D designed allows for separate powering of the tweeter and woofer to preserve your signal's integrity. All of this contained in a high-density composite enclosure for low diffraction and reduced low-frequency distortion.
Monitor Type Active 2-Way
Enclosure Bass-Reflex, Shielded
Power Rating 150 W
Drivers HF Driver: 1 x 1" / 25 mm Tweeter
LF Driver: 1 x 8" / 203 mm Woofer
Amplification Full-Range Amplifier: Class-D Rated at 150 W
Maximum Sound Pressure Level (SPL) 102 dB
Maximum Input Level +14 dBu
Protections and Limiting Limiter
EQ 1 x HF Shelf: -6 to 0 dB at 8 kHz (2 dB Increments)
1 x Low-Mid Shelf: -6 to 0 dB at 300 Hz (2 dB Increments)
1 x LF Shelf: -6 to 0 dB at 60 Hz (2 dB Increments)
Crossover Frequency 3 kHz
Crossover Type Active
I/O 1 x 3-Pin XLR Balanced Analog Input
1 x 1/4" (6.3 mm) TRS Balanced/Unbalanced Analog Input
1 x RCA Unbalanced Analog Input
AC Input Power 100 to 240 VAC, 50/60 Hz
Power Consumption 40 W (Maximum)
Enclosure Material MDF
Dimensions (W x H x D) 10.3 x 15.5 x 12.4" / 26.1 x 39.3 x 31.5 cm
Weight 19.2 lb / 8.7 kg
Package Weight 22.8 lb
Box Dimensions (LxWxH) 19 x 16.5 x 13"
