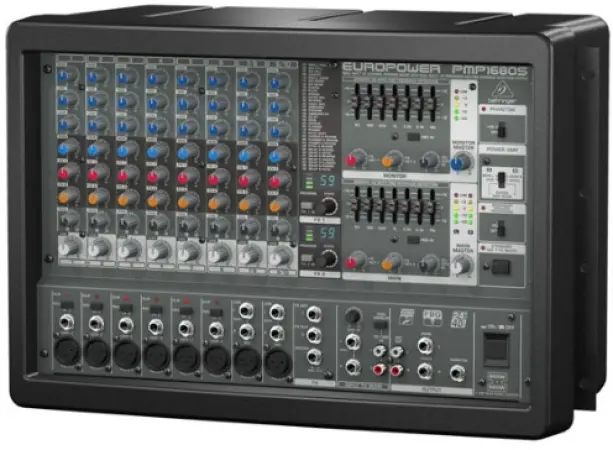

Behringer PMP-1680S (Behringer PMP 1680 S)
The new BEHRINGER PMP Powered Mixers (2 x 800-Watt stereo, 1600-Watt bridged mode) produce even more power than their predecessors while maintaining a famously low weight and high efficiency. These mixers employ Class-D technology including a new switch-mode power supply, significantly reducing weight and heat. The 20-channel PMP6000 features 12 built-in XENYX preamps, the 16-channel PMP4000 features 8 built-in XENYX mic preamps, and the 10-Channel PMP1680S features 8 high-quality built-in mic preamps. All three models feature 24-bit FX processors and FBQ Feedback Detection.
Ultra-compact rack-mountable 2 x 800-Watt stereo powered mixer (1600-Watt bridged mode)
Revolutionary Class-D amplifier technology: enormous power, incredible sonic performance and super-light weight
Ultra-compact design at nearly half the depth and weight of conventional powered mixers means no more lugging around dead weight
10-channel mixer section features 6 mono and 2 stereo channels plus separate CD/Tape input/output
2 studio-grade, 24-bit stereo FX processors with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies for easy feedback removal
8 high-quality mic preamps with switchable +48 V phantom power for condenser microphones
Effective, extremely musical 3-band EQ, switchable Pad, and Clip LEDs on all mono channels
Stereo 7-band graphic EQ allows precise frequency correction of monitor and main outputs
Voice Canceller function removes singer's voice from recordings for karaoke applications
Selectable stereo (main L/R), double mono (main/monitor) or bridged mono amplifier operation mode
Speaker Processing function adjusts frequency response to match professional speaker systems like BEHRINGER EUROLIVE series, etc.
Standby switch mutes all input channels during breaks while background music is provided via CD/Tape input
Adjustable stereo Aux input for connecting external signal sources
Internal switch-mode power supply, noise-free audio, superior transient response and very low power consumption
Rack mount brackets included
High-quality components and exceptionally rugged construction ensure long life
Conceived and designed by BEHRINGER Germany
What is Class-D Technology?
Instead of operating relatively continuously like Class AB circuits, Class-D amps switch on and off thousands of times per second, delivering power only when needed. In other words, the amplifier is either fully on or fully off , which significantly reduces power losses from the output devices given off as heat. Less heat means our amps don’t need massive heat sinks, and that means we can make them lighter. Our no-compromise design means the new PMP mixers will deliver full power with incredible fidelity all night long, without the need for lengthy rest cycles.
When used in conjunction with switching-mode power supplies, which don’t require huge and heavy transformers, our Class-D amplifiers provide tremendous dynamic punch and superior fidelity. The resulting speaker systems are much lighter, making them easy to transport and set up.
Massive Mono or Stunning Stereo
Our latest PMP give you the choice of 2 x 800-Watt stereo, 2 x 800-Watt dual mono mode (giving you a mono version of the main signal through one powered output plus a mono version of all monitor send signals through the second powered input) or 1,600-Watt bridged mono sound. Whether the center of attention happens to be a folk trio, a speech, or a synth-rock band with mind-boggling stereo patches, PMP mixers can accommodate. This sonic versatility also makes it an excellent choice for churches, where vocals and stereo recordings often share face time.
Classic Control, State-of-the-Art Sound
Leave the mic preamps at home, because the quality of sound that was once only available in the studio is ready to go wherever you do. Built-in, boutique-caliber mic preamps with switchable +48 V phantom power make it possible to use either dynamic or condenser mics with the PMP Series. The PMP6000 gives you 12 mic inputs while the PMP4000 and PMP1680S each give you 8 mic inputs.
