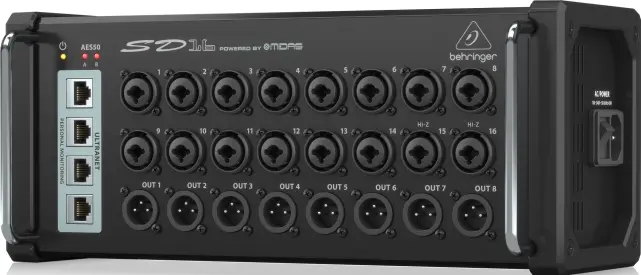

Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The Behringer SD16 provides 16 MIDAS-designed remote-controllable mic preamps, 8 balanced analog XLR returns at the stage end, plus an integrated 4-port ULTRANET distribution hub for direct connection to Behringer’s P16-M personal monitor mixers – without any additional hardware required.
The Behringer SD16 16-Channel Stage Box is extremely compact and comes with rugged protective bumpers, so you can toss them directly on stage wherever you need them. The best part – all it takes is a single Cat 5e cable per stage box. And if you need more inputs, or just want to keep your cable runs short and tidy, putting an Behringer SD16 at stage front and another behind the drum riser gives you an additional 16 inputs for drum and guitar/bass amp mic’ing. Order the Behringer SD16 16-channel stage box today!
Behringer SD16 Stage Box Mixer Features:
16 MIDAS-designed, fully programmable mic preamps for audiophile sound quality
8 analog, servo-balanced XLR outputs
AES50 network ports featuring KLARK TEKNIK’s SuperMAC networking capability for ultra-low jitter and latency
4-port ULTRANET distribution hub for powered connection of four BEHRINGER P16-M personal monitoring mixers
Digital audio and control connectivity for TURBOSOUND IQ speaker systems with ULTRANET networking capability
Rack ears and protection bumpers included for installed and mobile applications
Dual AES50 ports for cascading multiple units—no merger or router required
Up to 100 m networking capability via CAT-5e cable (not included)
USB connector for system updates via PC
Ultra-compact and roadworthy, all-steel chassis
When used as part of a complete X32 system, as many as three SD16 Stage Boxes can be cascaded via the built-in AES50 ports to provide up to 48 bidirectional inputs and 24 balanced XLR outputs. An onboard ULTRANET distribution hub provides power and 16 channels of audio to 4 Behringer Powerplay P16-M personal monitor mixers per SD16, all via inexpensive Cat 5e cabling – and without any additional hardware. Two of the programmable inputs are also compatible with Hi-Z sources, so you can connect keyboards, acoustic and bass guitars, etc., with no DI box required. The SD16 also features a USB port for fast and easy system updates via your PC.
Remotely Controllable Preamps Make Setup a Breeze
The Behringer SD16 16-Channel Stage Box is a studio/live sound engineer’s dream come true. Setup is extremely easy, with virtually all parameter control taking place at the console – including the award-winning MIDAS-designed mic preamps, +48 V phantom power, destination routing, etc. Just put the Behringer SD16 where you want it, run a few Cat 5e, mic and instrument cables – and head for the console. The SD16 makes setting the stage up virtually foolproof!
8 Servo-Balanced XLR Outputs
The Behringer SD16 stage box mixer features 8 XLR balanced outputs, allowing you to connect to your amp racks, active loudspeakers and monitors. Thanks to its reference-class Cirrus Logic 24-bit converters, the Behringer SD16’s digital operation eliminates even the slightest possibility of Radio Frequency Interference (RFI) and crosstalk. You get ultra-pristine audio performance, no matter the application – something unheard of in this class!
KLARK TEKNIK AES50
KLARK TEKNIK SuperMAC (AES50-Compliant) technology gives the Behringer SD16 its high-capacity, ultra-low latency digital interconnectivity, as well as superbly simple deployment and ease of use. KLARK TEKNIK engineers worked hand-in-hand with BEHRINGER to ensure the SD16 meets, or exceeds, the requirements of live entertainers and their professional audio engineers.
ULTRANET – Seamless Integration
The world-renowned engineers at KLARK TEKNIK, MIDAS, TURBOSOUND and BEHRINGER have all come together to create something truly innovative that will change your live and studio workflow forever – welcome to ULTRANET. This revolutionary technology seamlessly transmits up to 16 independent channels of 24-bit digital audio and control data via a single Cat 5e cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems.
Advantages realized through ULTRANET digital networking, versus traditional analog methods, include: all audio signals are impervious to Radio Frequency Interference (RFI); signal crosstalk is eliminated, and ease of use translates directly into a significant amount of time saved during show setup or installation. And the Behringer SD16 stage box mixer’s onboard ULTRANET distribution hub supplies phantom power over CAT5 directly to your P16-M Personal Monitoring Mixers, eliminating the need for external power adapters.
ULTRANET effectuates a powerful digital eco-system that gives you unparalleled ease of deployment, performance and control for BEHRINGER P16 Personal Monitoring Systems and Turbosound iQ Speaker Series.
As you can see, the Behringer SD16 stage box mixer is an extremely versatile 16 x 8 digital stage box solution with remote-controllable MIDAS-designed mic preamps, KLARK TEKNIK’s AES50 connectivity and a wealth of other professional-grade features – all at a price anyone can afford! Built tough enough to withstand the rigors of the road, the SD16 connects to FOH with a single, inexpensive Cat 5e cable. Now you can have the missing link between the stage and FOH at a fraction of the cost of competing systems.
