This product has been discontinued by the manufacturer. Please contact us to find a replacement.

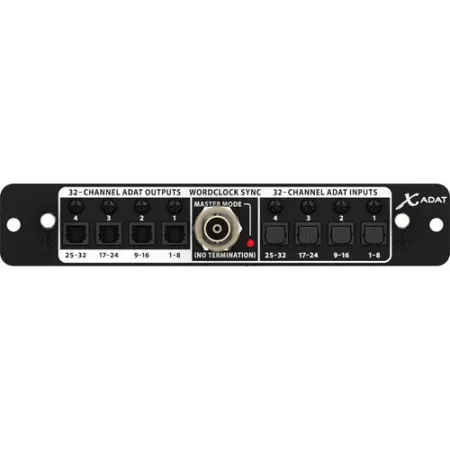

32-Channel ADAT Expansion Card For X32 Digital Mixing Console
Behringer X32 ADAT Features:
Expands the X32's Routing Capacities
Simultaneous 32 x 32 Channel I/O
32-Channel ADAT Input
32-Channel ADAT Output
BNC Word-Clock Sync Connector
TOSLINK Input Word-Clock Sync
24-Bit 48/44.1 kHz Signal Transmission
Light-Pipe Fiber-Optic Connections
Modular Card System
Plugs into Expansion Slot of X32
The Behringer X-ADAT 32-Channel ADAT Expansion Card For X32 Digital Mixing Console is designed to expand the recording capacities of the mixer with digital connections. The card plugs into the expansion port on the back of the mixer and provides simultaneous 32 channels of ADAT in and 32 channels of ADAT out to stand-alone recorders, digital audio workstations, signal processing equipment, or other digital mixers. The system can transfer the signal at 24-bit 48 or 44.1 kHz resolution and utilizes light-pipe fiber-optic connections to prevent ground loop interference.
The Behringer X32 Expansion Card also includes BNC Word-Clock In/Out synchronization connection for connecting to external clocks. External clock synchronization is also possible through any of the four TOSLINK inputs.
Behringer X32 ADAT Specifications:
Throughput
480 Mbit/s
I/O
32 x 32 channel audio
32 channels ADAT in
32 channels ADAT out
4x TOSLINK connectors for input
4x TOSLINK connectors for output
1x BNC Word-Clock In/Out connector
Signal transmission
24-bit 48 or 44.1 kHz
