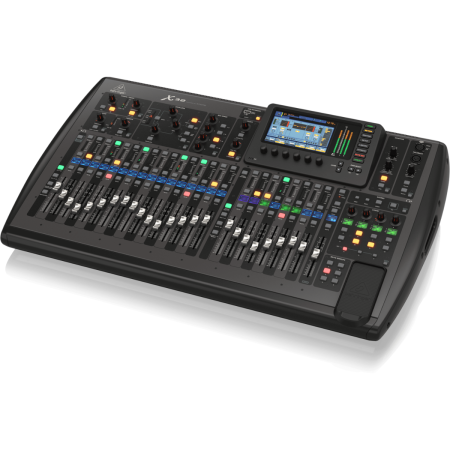

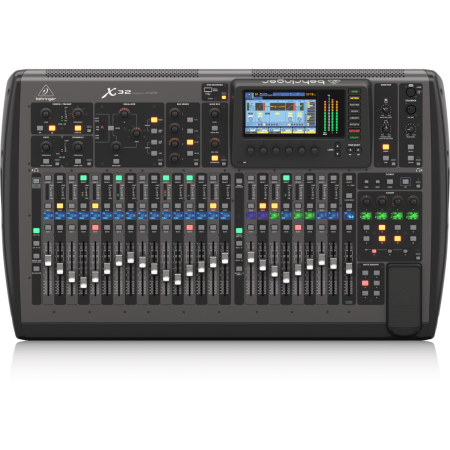

Behringer X 32 (Behringer X32 Rack Digital Mixer)
40-input channel, 25-bus digital mixing console for Studio and Live application
32 MIDAS-designed, fully programmable mic preamps for audiophile sound quality
25 Fully automated motorized 100 mm faders allow for instant overview, powerful scene management and DAW control
16 XLR outputs plus 6 additional line in/outputs, 2 phones connectors and a talkback section with integrated or external mic
Individual and dynamic LCD Scribble Strips on all channels and buses creating easy assignment and intuitive channel distinction
32 x 32 channel USB 2.0 audio interface, with DAW remote control emulating HUI* and Mackie Control*
iPad* and iPhone* apps for professional remote operation available free of charge—no host PC required
High-resolution 7" day-viewable Color TFT for easy viewing of workflow components and parameters
Main LCR, 6 matrix buses and 16 mix buses each featuring inserts, 6-band parametric EQ's and full dynamics processing, plus 8 DCA and 6 mute groups
Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L* and PCM70*, EMT250* and Quantec QRS* etc.
40-Bit floating-point DSP features "unlimited" dynamic range with no internal overload and near-zero overall latency (0.8 msec)
Powerful scene management for convenient handling of complex productions
48-channel Digital Snake ready** via AES50 ports, featuring KLARK TEKNIK’s SuperMAC networking capability for ultra-low jitter and latency
USB type-A connector providing file storage and uncompressed stereo recordings plus show presets and system updates
Dedicated and easy-to-use channel strip section with direct access controls and graphic user interface for intuitive workflow
Additional user-definable control section allows for on-the-fly adjustments of your favorite parameters
ULTRANET connectivity for BEHRINGER's P-16 Personal Monitoring System** plus AES/EBU stereo digital output and MIDI
Networked remote control for show setups with on-screen software editor via Ethernet
Built-in expansion port for audio interface cards or digital networking bridges
Future firmware updates, incl. new FX “Plug Ins”, downloadable from behringer.com free of charge
Conceived and designed by BEHRINGER Germany
Ever since the "dawn of digital" audio engineers the world over have had a
love-hate relationship with their consoles. The new BEHRINGER X32 rack digital mixer lets you focus on your event, instead of navigating a vast sea of knobs, buttons and menus like most other live digital mixers. X32 is intuitive and
powerful with 40 processing channels and 25 mix buses, all equipped with serious
signal processing (dynamics, EQ and inserts), which can be configured quickly to
meet the demands of virtually any gig, large or small.
Ready for your input
Use any combination of the local 32 console mic inputs or the networked digital snake inputs on stage—their audiophile quality programmable preamps always ensure full control, purity and impeccable dynamics. The dedicated channel strip section puts 17 backlit buttons and 13 rotary controls with LED-collars right at your fingertips for nuanced adjustment of each channel’s compressor, 4-band parametric EQ and much more. Each input and output channel strip features its own color backlit 128x64 graphic LCD, which provides vital channel information at-a-glance.
Virtual FX Rack
The onboard virtual FX Rack provides access to eight true-stereo, multi-effects processors (16 mono) including delay, chorus, dynamics—and it can run 4 production quality true-stereo reverbs concurrently with 8 channels of 31-band graphic equalization, all without the need for expensive, space-consuming external hardware.
High-count I/O options
The Behringer X32 rack digital mixer's extensive connectivity includes 32 high-end programmable mic preamps, 6 balanced Line Ins and Outs on 1/4" TRS, 16 balanced XLR Outs, plus dual Phones and balanced Control Room outputs on both XLR and 1/4" TRS connectors. Additionally, a single AES50 CAT5 cable from FOH to the stage can transfer up to 48 channels of bi-directional audio, collecting all input signals and delivering all bus outputs, along with 16 individual monitor feeds for BEHRINGER’s brand new P16 personal monitoring system—all on just one line! The two AES50 ports provide connectivity for up to 6 BEHRINGER S16 stage boxes, or for sharing signals between multiple consoles—all with its ultra-low latency and high reliability the SuperMAC technology is known for.
Vital information is just a click away
Thanks to the netbook-resolution, 800x480 high-contrast color TFT display, you are never more than one or two button presses away from any of Behringer X32’s eight highly intuitive control screens. Once you select the desired function, dedicated rotary/push encoders allow you to set parameters and source I/O assignment, without the need to “drill down” through multiple layers of menus or page through a complex owner’s manual.
Versatile signal and scene management
Signals can be assigned to eight DCA groups (Digitally Controlled Amplifier), which provides simultaneous group level control via dedicated 100 mm motorized faders. The audio engineer can communicate with the talent by means of the Talkback section’s onboard mic or an external mic of their choosing. The Behringer X32 rack digital mixer's scene management allows snapshots of high-level production mixes to be captured and recalled for future use (you can even save them to a USB stick). This 40 channel digital mixer even has a dedicated custom control section with user-definable knobs and buttons where you can create your own set of controls, making it easy to access frequently used functions "on-the-fly."
Powered by MIDAS & KLARK TEKNIK
When we began development on the Behringer X32 rack digital mixer, we called on our sister companies, MIDAS and KLARK TEKNIK, recognized the world over for their digital consoles and EQ/FX processing, for implementation support. The programmable, high-grade mic preamps found in the Behringer X32 rack digital mixer are based on a genuine MIDAS design, all the way down to their A/D converters. The resulting design ensures superior common mode rejection (CMRR) and extremely low harmonic distortion (THD). The X32 is an amazingly clean amalgam of high technology merged with superb user-friendly features.
We received brilliant support from MIDAS and KLARK TEKNIK in designing Behringer X32 rack digital mixer's GUI (graphical user interface), a major advancement in digital mixing made easy, productive, and well… fun! They also drew on their extensive experience in FPGA (Field Programmable Gate Array) coding for rock-solid, ultra-low latency digital channel patching—giving the 40 channel digital mixer the capacity to handle up to 168 sources on 168 destinations, including the two AES50 ports. You can expect to see more collaboration between BEHRINGER and MIDAS in the very near future.
Bus and Rear Panel Flexibility
The Behringer X32 rack digital mixer provides 25 fully featured mix buses that can be configured for many different applications; Main LCR (Left, Center, Right) buses; 16 mix buses (individually configurable as pre/post EQ, pre/post Fader or Subgroup) with Inserts, 6-band parametric EQ and dynamics processing; plus six independent Matrix Mixes with Inserts, also with 6-band parametric EQ and dynamics processing.
The Behringer X32 40 channel digital mixer abounds with a total of 168 accessible sources and destinations—and managing this much I/O has never been easier! Next to all the analog ins and outs, the rear panel also sports two AES50* ports, each with KLARK TEKNIK’s rock-solid SuperMAC networking capability (addressing a total of 96 concurrent inputs and outputs) for dependable communication between the Behringer X32 and digital snakes, remote stage boxes or even other consoles. Stereo AES/EBU output, ULTRANET P16 and MIDI are also supported, plus a convenient top panel USB port is provided for recording an uncompressed two-channel “board mix” straight to any standard USB thumb drive or for playing background music. The Ethernet socket allows complete remote control via LAN or WiFi, and the expansion slot suggests there is even more to come...
The Future is Here—Now!
The Behringer X32 rack digital mixer ships with the insanely powerful XUF USB audio interface card pre-installed in the expansion slot right out-of-the-box! XUF provides lowlatency 24-bit audio interfacing with Mac or PC host computers in the form of 32 In x 32 Out channels and MIDI. It even transmits HUI and Mackie Control data along with the audio I/O, which provides convenient remote control of your DAW via the X32 group fader section controls. XUF is compatible with CoreAudio on Mac OS 10.5 and above, and high-performance ASIO drivers for Windows PC are downloadable from behringer.com.
Digital Mixing—Analog Price
The BEHRINGER X32 40 channel digital mixer sets a new benchmark for live sound mixing along with unprecedented value. Behringer is proud to offer the full-featured X32 digital mixing console with it's large input and output channel count, comprehensive processing, flexible expansion options and intuitive user interface—all at a price point that anyone can afford!
Compose. Record. Mix. Share.
TRACKTION 4 puts the fun back into the creative process, so we’re including it free of charge with select BEHRINGER products. This powerful, yet easy-to-use music production software is unlike anything you’ve seen before, putting everything you’ll need on your desktop, on a single-screen – without the sea of drop down and hidden menus common to most other DAWs. And TRACKTION doesn’t limit the number of tracks you can record, or the number of effects you can use. In fact, the only limitation is your Mac or PC computer’s processing power. Recording and editing couldn’t be easier; simply drag, drop, cut, copy or paste. Once your magnum opus is finished, share it with other “Tracktioneers” so they can listen, collaborate and edit.
Purchase the Behringer X32 40-channel rack digital mixer from KPODJ today.
Here are just a few of TRACKTION 4’s outstanding features:
Native FX plug-ins ranging from dynamics to modulation, reverb and more
Support for available third party AU, VST and VSTi plug-ins
64-bit, 192 kHz Mix Engine
Audio Clip manipulation
Filters – Volume / Pan, Level Meter, 4-Band EQ, Aux Send & Return and FX
Export to a variety of formats such as .wav, .aif, and .mp3
