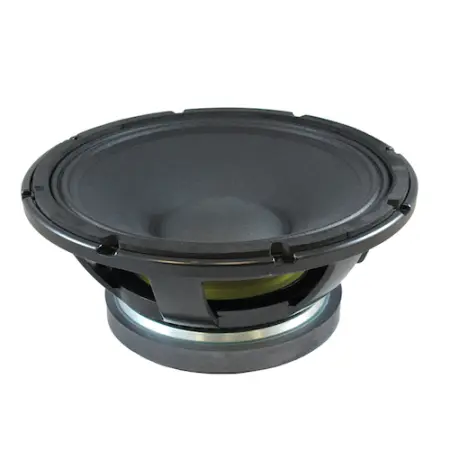

Blast King Blast12 Pro
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued
The Blast12 Pro is a ferrite magnet low frequency transducer capable of producing low frequencies with absolute definition in professional sound reinforcement applications that require a clear mid bass sound.Features like its 3” voice coil and a forced air ventilation system that dissipates heat significantly increase power handling and long term reliability. The Blast12 Pro is rated at 400 watts program with a frequency response between 50 Hz – 2.8 kHz making it an ideal choice for compact size enclosures.
Applications
The Blast12 Pro can be used for both live and recorded music applications. Capable of producing a high output mid bass frequencies yet maintaining clarity and definition, the Blast12 Pro is the premier choice for compact mid bass frequency applications.
Features
3” Voice Coil
400 Watts program power
97 dB sensitivity
50 Hz – 2.8 kHz frequency response
Forced air ventilation
Specifications:
Nominal Basket Diameter 320/12 mm/inch
Rated Impedance 8 ohm
Program Power 400 Watts
Power Handling Capacity 1200 Watts
Sensitivity 97 dB
Frequency Range 50-2.8k hz
Effective Piston Diameter 249/9.8 mm/inch
Minimum Impedance 6 ohm
Voice Coil Diameter 75.5/3 mm/inch
Voice Coil Material Copper
Thiele - Small Parameters
Resonance Frequency (Fs ) 45 Hz
DC Resistance (Re) 5.2 ohm
Mechanical Factor (Qms) 5.46
Electrical Factor (Qes) 0.185
Total Factor (Qts) 0.179
BL Factor (BL) 24.1 T m
Effective Moving Mass (Mms) 81 gr
Equivalent Cas Air Load (Vas) 70 liters
Maximum Linear Excursion (Xmax) 3.5 mm
Voice Coil Inductance (La1k) 1.7 mH
Mounting Information
Overall Diameter 320/12 mm/inch
Bolt Circle Diameter 301/11.8 mm/inch
Bolt Hole Diameter 7/0.275 mm/inch
Baffle Hole Diameter 320/12.6 mm/inch
Depth 147/5.78 mm/inch
Shipping Information
Net Weight 9/19.8 Kg/Lbs
Shipping Weight 10/22 Kg/Lbs
