This product has been discontinued by the manufacturer. Please contact us to find a replacement.

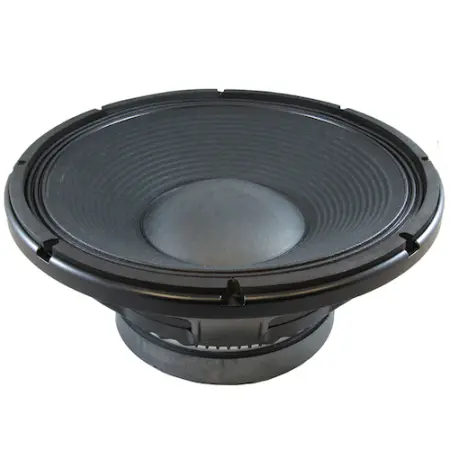

The Blast15 Pro is a ferrite magnet low frequency transducer capable of producing low frequencies with absolute definition in professional sound reinforcement applications that require a clear mid bass sound.Features like its 4” voice coil and a forced air ventilation system that dissipates heat significantly increase power handling and long term reliability. The Blast15 Pro is rated at 600 watts program with a frequency response between 40 Hz – 2.5 kHz making it an ideal choice for mid bass high output enclosures.
Applications
The Blast15 Pro can be used for both live and recorded music applications. Capable of producing a high output mid bass frequencies yet maintaining clarity and definition, the Blast15 Pro is the premier choice for mid bass frequency applications.
Features:
4” Voice Coil
600 Watts program power
97 dB sensitivity
40 Hz – 2.5 kHz frequency response
Forced air ventilation
Specifications:
General Specifications
Nominal Basket Diameter 394/15 mm/inch
Rated Impedance 8 ohm
Program Power 600 Watts
Power Handling Capacity 1500 Watts
Sensitivity 97 dB
Frequency Range 40-2.5k hz
Effective Piston Diameter 355/13.97 mm/inch
Minimum Impedance 6 ohm
Voice Coil Diameter 99.2/3.90 mm/inch
Voice Coil Material Copper
Thiele - Small Parameters
Resonance Frequency (Fs ) 40 Hz
DC Resistance (Re) 5.1 ohm
Mechanical Factor (Qms) 4.64
Electrical Factor (Qes) 0.307
Total Factor (Qts) 0.288
BL Factor (BL) 24.1 T m
Effective Moving Mass (Mms) 128 gr
Equivalent Cas Air Load (Vas) 150 liters
Maximum Linear Excursion (Xmax) 6 mm
Voice Coil Inductance (La1k) 2.1 mH
Mounting Information
Overall Diameter 394/15 mm/inch
Bolt Circle Diameter 374/14.7 mm/inch
Bolt Hole Diameter 8/0.314 mm/inch
Baffle Hole Diameter 354/13.9 mm/inch
Depth 160/6.29 mm/inch
Shipping Information
Net Weight 12/26.4 Kg/Lbs
Shipping Weight 13/28.6 Kg/Lbs
