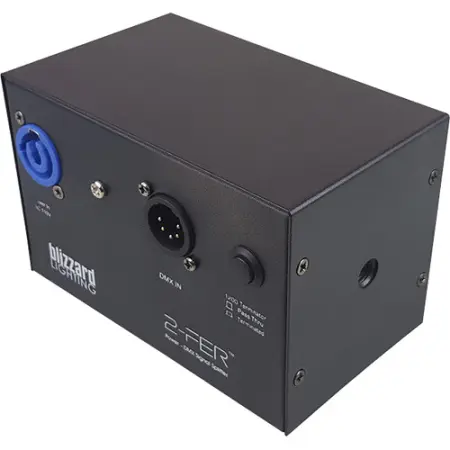

The 5-Pin 2-Fer 2-Way DMX Signal Splitter from Blizzard Lighting is a 2-way power splitter and 2-way DMX splitter in a steel housing that is a valuable asset in situations where powerCON and DMX cables are frequently used. The unit has 1 x 5-Pin DMX input and 2 x 5-Pin outputs to split the signal. Additionally, it has 1 x 20A powerCON input and 2 x powerCON outputs to split the power. The 100% optically isolated splitters also have a built-in 120Ω terminator/pass thru switch to complete the DMX chain and a threaded hole in the splitter box for mounting to truss, pipe, etc.
Benefits:
1 x DMX signal input
2 x DMX signal outputs
1 x powerCON compatible input
2 x powerCON compatible outputs
Optically isolated XLR connectors
Flush-mounted power connectors
5-Pin XLR connectors
120 Ohm Terminator/pass thru switch
12/14 AWG internal wiring
Output power/signal LED status indicators
Steel housing
Threaded clamp mounting hole (M10)
Sturdy, reliable build
Blizzard 2-FER 5 PIN Specs:
General
Ports 1 x 5-Pin XLR DMX Input
2 x 5-Pin XLR DMX Output
1 x powerCON Input
2 x powerCON Output
Power
AC Input Power 110 to 240 VAC, 50 / 60 Hz
Physical
Dimensions 5.4 x 3.3 x 3.5" / 136.0 x 82.0 x 88.0 mm
Weight 2.5 lb / 1.1 kg
Blizzard Pro
2 FER-5PIN
(
Blizzard Lighting
2-FER 5PIN
)
