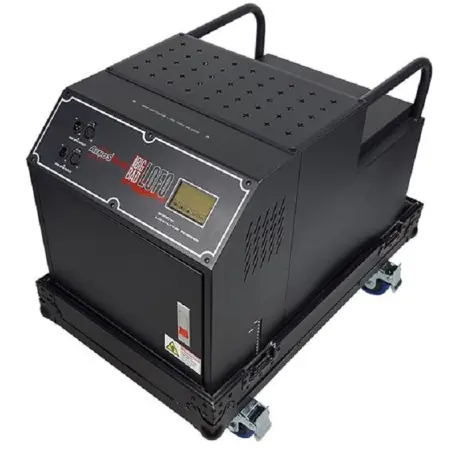

AtmosFEAR Big Bad Lo Fo
2000W Water-Based Low Lying Fogger

Tour-Ready Fogger
AtmosFEAR® Big Bad Lo Fo is an amazing low-lying fog machine based on ultrasonic atomization. Co2 or dry ice is not needed to create stunning fog effects, just good ol’ fashioned water + a little fog juice. The water tank can be filled manually, or automatically by use of its water supply inlet, nozzle connector, and built-in float switch.

Ultrasonic Atomization
The water tank is fitted with piezoelectric disks which vibrate to ultrasonic frequencies, causing the water to atomize into a fine mist. In a separate tank in the front cabinet of the unit, you can add any type of water based fog liquid (light, standard, heavy, etc.) in order to give the effect different levels of dimension, intensity and duration.

MAIN FEATURES
• DMX controllable water-based low-lying machine
• Continuous or timed fog output
• Tour-ready ATA-spec flight case with wheels
• 2000W heat exchanger
• Touch screen LCD control panel menu display
• Timer with interval and duration settings
• 2 x 10FT output hoses w/adjustable clamps
• Fault warnings for remote, sensor, heater, and low fluid
• 3/5-pin DMX connectivity
• 3-channel DMX control
• Wireless remote control included
• Includes water inlet nozzle connector
• Underside valve for easy tank draining
• PowerCON® compatible power input connector



PRODUCT SPECIFICATIONS

Overview

Warm-up Time: 5-8 min.

Water Tank Capacity: 13L

Fluid Tank Capacity: 2L

Fluid Consumption: 1L/h

Output Hoses: 2 x 10FT


Weight & Dimensions

34.7 x 19.3 x 20.5 in. (88 x 49 x 60 cm)

Weight: 96 lbs (44 kg)


Control

Touch Screen LCD Menu

DMX Channels: 3-Channels

Input: 3/5-pin XLR Male

Output: 3/5-pin XLR Female

Standalone, DMX-512, M/S, Wireless Remote


Power & Current
Voltage: AC110-220V 50/60Hz
Fuse: 15A, 250V
Power consumption: 1983W, 19.1A, PF: .99


Warranty
1-year limited warranty
