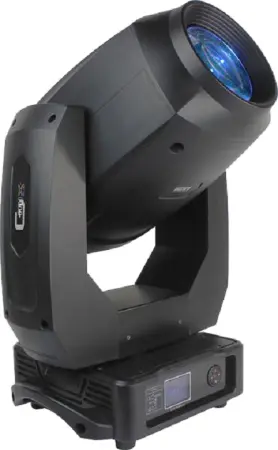

G-Max™ 200
200W LED Spot Moving Head Fixture
200W LED Moving Spot
G-Max™ 200 is an LED moving head that boasts some serious power with its extremely bright, 200W LED light engine, and it's 13°- 27° motorized zoom is perfect for short or long throws. It is equipped with ultra-fast 3-phase pan/tilt motors plus an 8 color + open color wheel, 7x static metal gobos +open, and 7x rotating glass gobos +open which can create amazing gobo morphing effects and mid-air projections.
Fully Loaded
It also offers a motorized linear iris, focus, and frost, plus it has two rotatable prism settings with 6-facet linear, and 8-facet prism effects with variable speed and direction control that can create a stunning aerial display. All of these professional features can be easily controlled by using either of its well-structured 16/19-channel DMX modes, or accessed directly by using its easy-to-use 5-button LCD control panel.
MAIN FEATURES
• 200W white LED light engine, 60,000 hours
• Fast and precise zoomable beam angle (13°- 27°)
• 8-16 bit smooth pan and tilt resolution
• Pan: 540°/ Tilt: 230° with 3-phase motors
• 8 colors + open color wheel
• 7 metal gobos + open
• 7 rotating, indexable and replaceable gobos + open
• Smooth dimmer from 0 - 100%
• 6 linear + 8-facet prisms with variable speed and direction
• Motorized linear iris, focus, and frost
• Linear electronic focus
• Dual omega brackets with 1/4-turn fasteners
Overview
38,405 Lux @ 2.5M (narrow), 13,058 Lux @ 2.5M (wide)
9,937 Lux @ 5M (narrow), 3,241 Lux @ 5M (wide)
4,668 Lux @ 7.5M (narrow), 1,543 Lux @ 7.5M (wide)
2,746 Lux @ 10M (narrow), 916 Lux @ 10M (wide)
Optical
200W white LED light engine, 60,000 hours
Fast and precise zoomable beam angle (13°- 27°)
Flicker-free LED
Weight & Dimensions
14.96" x 9.8" x 21.7" (380 x 247 x 550 mm)
48.5 Lbs. (22kg)
Control
Protocol: USITT DMX-512
3/5-pin DMX in/out
DMX channels: 16/19-channel modes
Easy-to-use 5-button control panel with LCD display
Operating modes: DMX512, master/slave, auto mode
Power & Current
90-250VAC, 50-60 Hz
Power Consumption: 283W, 2.49A, PF: .99
PowerCON™ TRUE1-compatible AC power In/Out connectors
Warranty
2-year limited warranty
